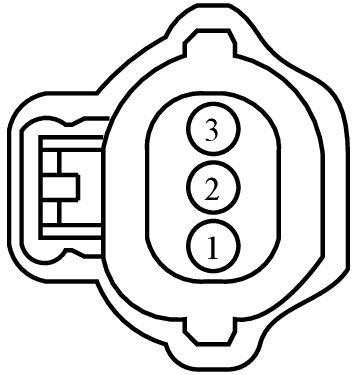

Connector End View (C1073) - FUEL RAIL PRESSURE (FRP) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1073	FUEL RAIL PRESSURE (FRP) SENSOR	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
6R8T-14474-DA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	LE423 (GN-VT)	20	CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) (E-VREF) (VREF1)	6R8T-14474-DA
2	RE238 (BU-BN)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR -	NA
3	LE238 (GY)	20	CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR +	NA

Available Pigtail Kits

Pigtail Kit Part Number WPT-1341

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AXA

Gauge:

20

Pin material:

Tin (greased)

Cavities:

3

Vehicle Uses:

• Sensor - Headlamp Leveling
