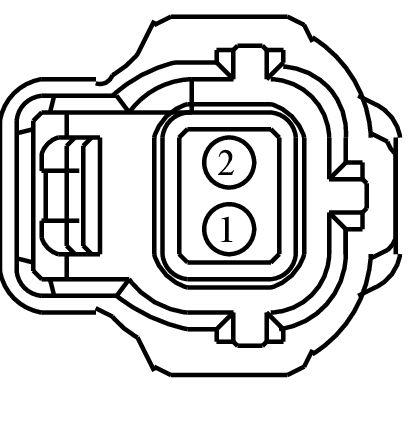

Connector End View (C1064) - ENGINE COOLANT TEMPERATURE (ECT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1064	ENGINE COOLANT TEMPERATURE (ECT) SENSOR	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE716 (YE)	20	SENSOR - ENGINE COOLANT TEMPERATURE (ECT)	NA
2	RE454 (YE-GN)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE #2	96AG-14474-AA
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	1.5L	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-989

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-HYB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Sensor - Coolant Temperature
• Sensor - Cylinder Head Temperature
• Sensor - Transmission Oil Temperature
