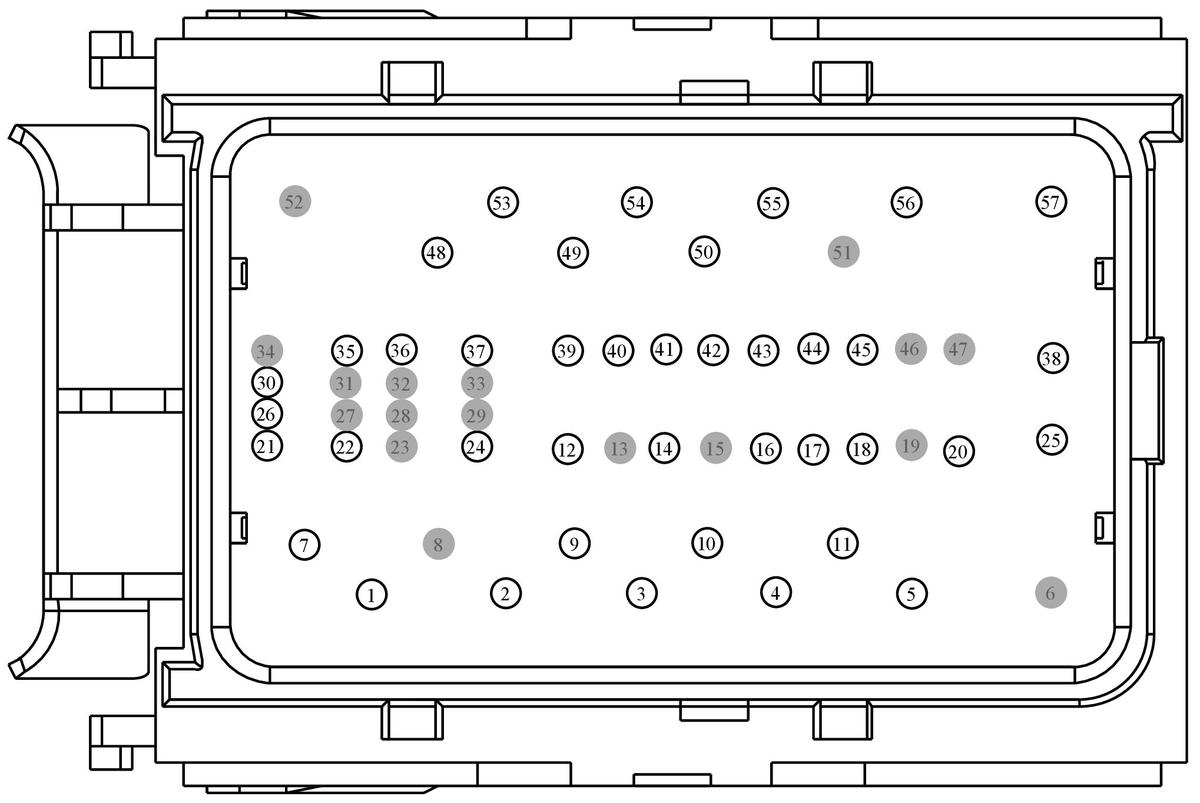

Connector End View (C1035B) - BATTERY JUNCTION BOX (BJB)

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C1035B	BATTERY JUNCTION BOX (BJB)	12A581			#N/A	Not Available

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
*DU5T-14474-JBA	Not Available
XL3T-14474-BA	Not Available
DU5T-14474-NBA	EU2Z-14474-AA	2.8
DU5T-14474-LBA	EU2Z-14474-AA	2.8
DU5T-14474-JBA	EU2Z-14474-AA	2.8
7C3T-14474-EA	DU2Z-14474-DA	1.5
BU5T-14474-UA	DU2Z-14474-DA	1.5
CU5T-14474-EA	DU2Z-14474-CA	0.64
97BG-14474-BCA	DU2Z-14474-EA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	SBB85 (WH-RD)	10	FUSE - 85 OR CIRCUIT BREAKER	DU5T-14474-NBA
2	SBB81 (RD)	10	FUSE - 81 OR CIRCUIT BREAKER	DU5T-14474-NBA
3	SBB77 (GY-RD)	10	FUSE - 77 OR CIRCUIT BREAKER	DU5T-14474-NBA
4	SBB73 (RD)	12	FUSE - 73 OR CIRCUIT BREAKER	DU5T-14474-LBA
5	SBB05 (GY-RD)	20	FUSE - 5 OR CIRCUIT BREAKER	Lincoln	*DU5T-14474-JBA
6	*	*	Not Used	N/A
7	CDC25 (BN-GN)	12	RELAY - STARTER	DU5T-14474-LBA
8	*	*	Not Used	N/A
9	SBB05 (GY-RD)	16	FUSE - 5 OR CIRCUIT BREAKER	DU5T-14474-JBA
10	CBB49 (VT-GY)	20	FUSE - 49 OR CIRCUIT BREAKER	Lincoln	*DU5T-14474-JBA
10	CBB49 (VT-GY)	16	FUSE - 49 OR CIRCUIT BREAKER	Ford	N/A
11	CLF61 (GY-BU)	20	CTRL MOD. - DAYTIME RUNNING LIGHT LEFT	*DU5T-14474-JBA
12	CRW13 (GN)	18	SWITCH - REAR WIPER	7C3T-14474-DA
13	*	*	Not Used	N/A
14	SBB55 (BN-RD)	14	FUSE - 55 OR CIRCUIT BREAKER	7C3T-14474-EA
15	*	*	Not Used	N/A
16	SBB54 (WH-RD)	20	FUSE - 54 OR CIRCUIT BREAKER	BU5T-14474-UA
17	CBB21 (BU-GY)	14	FUSE - 21 OR CIRCUIT BREAKER	7C3T-14474-EA
18	CBB53 (GY-BN)	20	FUSE - 53 OR CIRCUIT BREAKER	BU5T-14474-UA
19	*	*	Not Used	N/A
20	CDC43 (YE-BU)	18	RELAY - ELECTRICAL STEERING COLUMN LOCK	7C3T-14474-DA
21	CRD02 (BU-BN)	20	CTRL MOD. - RELAY HEATER REAR WINDOW	CU5T-14474-EA
22	CBK03 (GN-WH)	20	FUSE - 3 OR CIRCUIT BREAKER (VPWR 3)	CU5T-14474-EA
23	*	*	Not Used	N/A
24	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	CU5T-14474-EA
25	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER	DU5T-14474-LBA
26	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	CU5T-14474-EA
27	*	*	Not Used	N/A
28	*	*	Not Used	N/A
29	*	*	Not Used	N/A
30	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)	CU5T-14474-EA
31	*	*	Not Used	N/A
32	*	*	Not Used	N/A
33	*	*	Not Used	N/A
34	*	*	Not Used	N/A
35	CE226 (YE-VT)	20	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	CU5T-14474-EA
36	CDC45 (VT-BN)	20	CTRL MOD. - ELECTRICAL STEERING COLUMN LOCK +	CU5T-14474-EA
37	CDC40 (VT-GY)	20	RELAY - DELAY ACCESSORY	CU5T-14474-EA
37	SBB45 (GY-RD)	18	FUSE - 45 OR CIRCUIT BREAKER	Police	N/A
38	CE608 (VT-GN)	12	RELAY - FUEL PUMP	97BG-14474-BCA
38	CE608 (VT-GN)	10	RELAY - FUEL PUMP	Lincoln-3.0L	DU5T-14474-NBA
39	CRW13 (GN)	18	SWITCH - REAR WIPER	7C3T-14474-DA
40	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER	BU5T-14474-UA
41	SBB28 (YE-RD)	16	FUSE - 28 OR CIRCUIT BREAKER	7C3T-14474-DA
42	CBB24 (VT-GN)	20	FUSE - 24 OR CIRCUIT BREAKER	BU5T-14474-UA
43	CBB25 (WH-OG)	18	FUSE - 25 OR CIRCUIT BREAKER	7C3T-14474-DA
44	CBB26 (BU-WH)	20	FUSE - 26 OR CIRCUIT BREAKER	BU5T-14474-UA
45	SBB29 (YE-RD)	16	FUSE - 29 OR CIRCUIT BREAKER	7C3T-14474-DA
46	*	*	Not Used	N/A
47	*	*	Not Used	N/A
48	SBB17 (RD)	16	FUSE - 17 OR CIRCUIT BREAKER	DU5T-14474-JBA
48	SBB26 (YE-RD)	16	FUSE - 26 OR CIRCUIT BREAKER	Ford China	DU5T-14474-JBA
49	CRW03 (VT-WH)	14	RELAY - FRONT WIPER	DU5T-14474-LBA
50	CRH04 (VT-GN)	18	CTRL MOD. - RELAY HORN	*DU5T-14474-JBA
51	*	*	Not Used	N/A
52	*	*	Not Used	N/A
53	CRW25 (BU-GY)	14	RELAY - FRONT WIPER PARK	DU5T-14474-LBA
54	SBB76 (GN-RD)	14	FUSE - 76 OR CIRCUIT BREAKER	Ford China, Police	DU5T-14474-LBA
54	SBB80 (VT-RD)	12	FUSE - 80 OR CIRCUIT BREAKER	DU5T-14474-LBA
55	SBB72 (GN-RD)	14	FUSE - 72 OR CIRCUIT BREAKER	DU5T-14474-LBA
56	CBB30 (YE-BU)	12	FUSE - 30 OR CIRCUIT BREAKER	Ford, Lincoln	DU5T-14474-LBA
57	SBB82 (YE-RD)	10	FUSE - 82 OR CIRCUIT BREAKER	XL3T-14474-BA
