Connector End View (C1035A) - BATTERY JUNCTION BOX (BJB)

Connector: Description Color Harness Base Part # Service Pigtail
C1035A BATTERY JUNCTION BOX (BJB) 12A581 #N/A Not Available

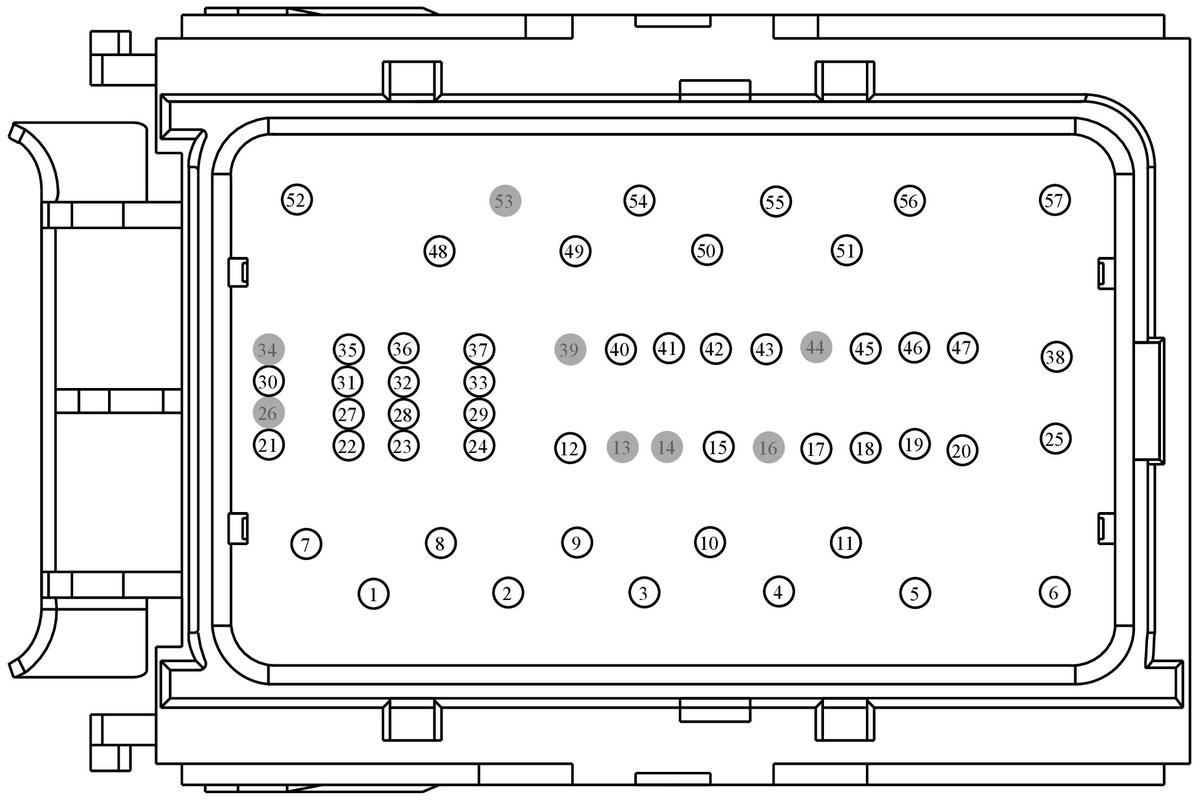

GFDWR88830Courtesy of FORD MOTOR COMPANY
Terminal Part Number  Service Part Number  Size
*XL3T-14474-BA Not Available
XL3T-14474-BA Not Available
*DU5T-14474-JBA Not Available
BU5T-14474-UA DU2Z-14474-DA 1.5
CU5T-14474-EA DU2Z-14474-CA 0.64
DU5T-14474-LBA EU2Z-14474-AA 2.8
DU5T-14474-NBA EU2Z-14474-AA 2.8
7C3T-14474-EA DU2Z-14474-DA 1.5
DU5T-14474-TAA DU2Z-14474-CA 0.64
DU5T-14474-JBA EU2Z-14474-AA 2.8
Pin  Circuit  Gauge  Circuit Function  Qualifier  Terminal Part Number
1 CRW03 (VT-WH) 14 RELAY - FRONT WIPER Ford China DU5T-14474-LBA
1 SBB83 (GN-RD) 14 FUSE - 83 OR CIRCUIT BREAKER DU5T-14474-LBA
2 CDC25 (BN-GN) 12 RELAY - STARTER DU5T-14474-LBA
2 CRW25 (BU-GY) 14 RELAY - FRONT WIPER PARK Ford China DU5T-14474-LBA
3 CH402 (YE-GN) 10 RELAY - FRONT BLOWER Ford China DU5T-14474-NBA
4 CRD06 (BN-YE) 10 RELAY - HEATER REAR WINDOW DU5T-14474-NBA
5 CEC05 (VT-GY) 10 RELAY - ENGINE COOLING FAN Ford China DU5T-14474-LBA
5 GD120 (BK-GN) 10 GROUND - FENDER FRONT LEFT DU5T-14474-NBA
6 SBB67 (BU-RD) 9 FUSE - 67 OR CIRCUIT BREAKER *XL3T-14474-BA
7 GD120 (BK-GN) 16 GROUND - FENDER FRONT LEFT DU5T-14474-JBA
8 SBB01 (VT-RD) 10 FUSE - 1 OR CIRCUIT BREAKER DU5T-14474-NBA
9 SBB10 (YE-RD) 16 FUSE - 10 OR CIRCUIT BREAKER DU5T-14474-JBA
10 CBB07 (GN-BU) 14 FUSE - 7 OR CIRCUIT BREAKER DU5T-14474-LBA
11 CBK02 (GN) 18 FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) Ford China *DU5T-14474-JBA
11 CBK02 (GN) 16 FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) DU5T-14474-JBA
12 CH401 (VT-WH) 20 RELAY - A/C CLUTCH BU5T-14474-UA
13 * * Not Used N/A
14 * * Not Used N/A
15 SBB47 (WH-RD) 20 FUSE - 47 OR CIRCUIT BREAKER BU5T-14474-UA
16 * * Not Used N/A
17 CBK04 (VT) 14 FUSE - 4 OR CIRCUIT BREAKER (VPWR 4) 7C3T-14474-EA
18 CBK03 (GY) 16 FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) Ford China 7C3T-14474-DA
18 CBK03 (GN-WH) 16 FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) 7C3T-14474-DA
19 CBB19 (BN-WH) 14 FUSE - 19 OR CIRCUIT BREAKER 7C3T-14474-EA
20 CBB26 (BU-WH) 20 FUSE - 26 OR CIRCUIT BREAKER BU5T-14474-UA
21 CDC54 (WH-GN) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) CU5T-14474-EA
22 CDC54 (WH-GN) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) CU5T-14474-EA
22 CDC72 (BN-WH) 20 CTRL MOD. - POWER OUTLET DISABLE OR RESET Ford China CU5T-14474-EA
23 CE237 (BN-WH) 20 CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) CU5T-14474-EA
23 CE302 (YE-BU) 20 CTRL MOD. - POWERTRAIN # POWERTRAIN CONTROL RELAY (PCMRC) CU5T-14474-EA
23 CH123 (VT-GN) 20 CTRL MOD. - BLOWER MOTOR RELAY Ford China CU5T-14474-EA
24 CEC02 (GN-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC1) CU5T-14474-EA
25 CEC05 (VT-GY) 10 RELAY - ENGINE COOLING FAN DU5T-14474-NBA
25 CEC07 (BN) 10 RELAY - ENGINE COOLING FAN HIGH SPEED Ford China DU5T-14474-NBA
26 * * Not Used N/A
27 CDC12 (YE) 20 CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) CU5T-14474-EA
28 CDC55 (BN-VT) 20 RELAY - RUN START CU5T-14474-EA
29 CEC01 (WH-BU) 20 CTRL MOD. - COOLING FAN CONTROL (FC2) CU5T-14474-EA
30 CDC71 (YE-GY) 20 CTRL MOD. - POWER OUTLET ENABLE OR SET CU5T-14474-EA
31 CH123 (VT-GN) 20 CTRL MOD. - BLOWER MOTOR RELAY CU5T-14474-EA
32 CRH02 (BU-WH) 20 SWITCH - HORN CU5T-14474-EA
32 CRH02 (BU-WH) 22 SWITCH - HORN Ford China DU5T-14474-TAA
33 CRD02 (BN-BU) 20 CTRL MOD. - RELAY HEATER REAR WINDOW CU5T-14474-EA
34 * * Not Used N/A
35 CDC40 (VT-GY) 20 RELAY - DELAY ACCESSORY Ford China CU5T-14474-EA
35 CDC72 (BN-WH) 20 CTRL MOD. - POWER OUTLET DISABLE OR RESET CU5T-14474-EA
36 CE237 (BN-WH) 20 CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) Ford China CU5T-14474-EA
36 CRD02 (BN-BU) 20 CTRL MOD. - RELAY HEATER REAR WINDOW CU5T-14474-EA
37 CH302 (WH-BN) 20 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) CU5T-14474-EA
37 CH302 (WH-BU) 20 CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY / WOT AC CUTOFF (ACCR) 2.7L/3.0L CU5T-14474-EA
38 CEC07 (BN) 10 RELAY - ENGINE COOLING FAN HIGH SPEED DU5T-14474-NBA
38 GD120 (BK-GN) 12 GROUND - FENDER FRONT LEFT Ford China DU5T-14474-LBA
39 * * Not Used N/A
40 SBB47 (WH-RD) 20 FUSE - 47 OR CIRCUIT BREAKER BU5T-14474-UA
41 SBB46 (BN-RD) 14 FUSE - 46 OR CIRCUIT BREAKER 7C3T-14474-EA
42 SBB45 (GY-RD) 18 FUSE - 45 OR CIRCUIT BREAKER 7C3T-14474-DA
43 CBB20 (YE-VT) 20 FUSE - 20 OR CIRCUIT BREAKER Ford China BU5T-14474-UA
44 * * Not Used N/A
45 CH401 (VT-WH) 20 RELAY - A/C CLUTCH BU5T-14474-UA
46 CBB20 (YE-VT) 20 FUSE - 20 OR CIRCUIT BREAKER BU5T-14474-UA
46 CRH04 (VT-GN) 16 CTRL MOD. - RELAY HORN Ford China 7C3T-14474-DA
47 CBB19 (BN-WH) 14 FUSE - 19 OR CIRCUIT BREAKER 7C3T-14474-EA
47 CBB25 (WH-OG) 18 FUSE - 25 OR CIRCUIT BREAKER Ford China 7C3T-14474-DA
48 SBB05 (GY-RD) 16 FUSE - 5 OR CIRCUIT BREAKER DU5T-14474-JBA
49 SBB16 (VT-RD) 16 FUSE - 16 OR CIRCUIT BREAKER DU5T-14474-JBA
50 CLF61 (GY-BU) 20 CTRL MOD. - DAYTIME RUNNING LIGHT LEFT DU5T-14474-JBA
51 CEC06 (YE-OG) 10 RELAY - ENGINE COOLING FAN 2ND Ford China DU5T-14474-NBA
51 GD126 (YE-OG) 10 GROUND - FLOOR CROSS MEMBER REAR LEFT (OBSOLETE) DU5T-14474-NBA
52 SBB82 (YE-RD) 10 FUSE - 82 OR CIRCUIT BREAKER XL3T-14474-BA
53 * * Not Used N/A
54 SBB74 (YE-RD) 10 FUSE - 74 OR CIRCUIT BREAKER Ford China DU5T-14474-NBA
54 SBB74 (YE-RD) 12 FUSE - 74 OR CIRCUIT BREAKER DU5T-14474-LBA
55 SBB70 (BN-RD) 12 FUSE - 70 OR CIRCUIT BREAKER DU5T-14474-LBA
56 SBB69 (GY-RD) 12 FUSE - 69 OR CIRCUIT BREAKER DU5T-14474-LBA
56 SBB69 (GY-RD) 14 FUSE - 69 OR CIRCUIT BREAKER China DU5T-14474-LBA
57 SBB62 (BN-RD) 8 FUSE - 62 OR CIRCUIT BREAKER XL3T-14474-BA
