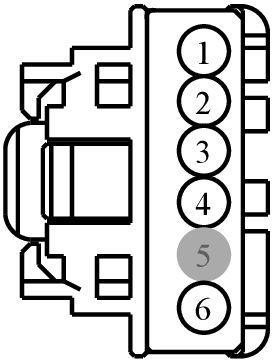

Connector End View (C289) - AIR INLET DOOR ACTUATOR
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C289 | AIR INLET DOOR ACTUATOR | 18B518 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 9U5T-14474-NA | DU2Z-14474-BA | 0.64 |
| 9U5T-14474-LA | DU2Z-14474-BA | 0.64 |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CH208 (GN-WH) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 2 / OPEN (IF PLUS) | 9U5T-14474-NA | ||||
| 2 | RH111 (GY) | 26 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF RETURN IN LOGICAL SCHEMATICS | 9U5T-14474-NA | ||||
| 3 | LH111 (BN-WH) | 22 | CTRL MOD. - CLIMATE # DOOR POSITION SENSORS ALSO GENERIC VREF IN LOGICAL SCHEMATICS | 9U5T-14474-LA | ||||
| 4 | CH206 (YE-BU) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COMMON | 9U5T-14474-NA | ||||
| 5 | * | * | Not Used | N/A | ||||
| 6 | CH207 (BU-OG) | 26 | CTRL MOD. - CLIMATE # DOOR MOTOR RECIRC. COIL 1 / CLOSE (IF PLUS) | 9U5T-14474-NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1249
Service Part Number:
3U2Z-14S411-BYAC
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Lamp - Dome
- Lamp - Storage Compartment - Cargo
- Motor - Heater A/C Mode Door
- Motor - Heater/AC Blend Door
- Motor - Heater/AC Inlet Door
- Switch - Hazard Warning
- Switch - Heated Seat
- Switch - Heater A/C Blower (Rear)
- Switch - Speed Control
