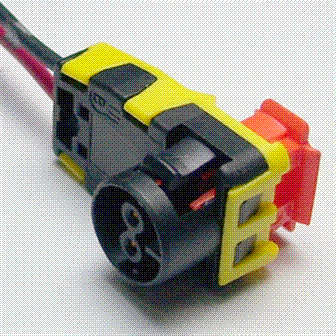

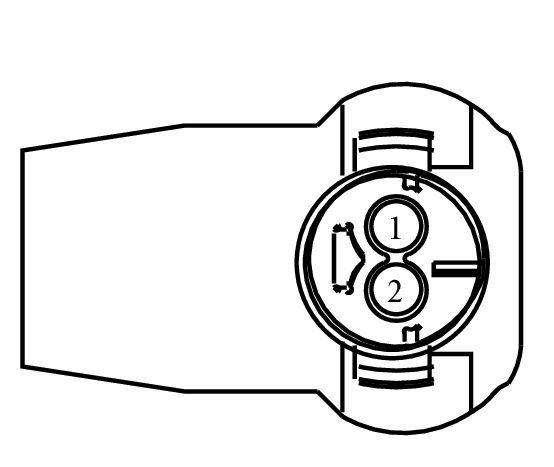

Connector End View (C256C) - PASSENGER AIRBAG
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C256C | PASSENGER AIRBAG | 14401 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | CR144 (GY-OG) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING + | NA | ||||
| 2 | RR144 (VT-GN) | 20 | CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING - | NA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1225
Service Part Number:
BU2Z-14S411-BHA
Gauge:
20
Pin material:
FCI - Airbag
Cavities:
2
Vehicle Uses:
- Airbag - Side Curtain
- Pretensioner - Seat Belt (Driver)
- Pretensioner - Seat Belt (Passenger)
- Sensor - Side Impact
- Squib - Airbag (Driver)
- Squib - Airbag (Passenger)
