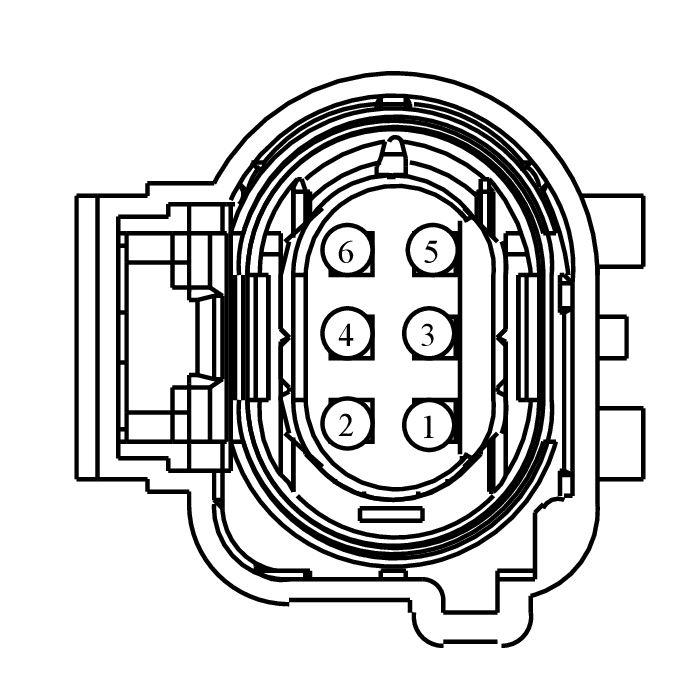

Connector End View (C171) - UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C171 | UNIVERSAL HEATED OXYGEN SENSOR (HO2S) #11 | 12C508 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| 6G9T-14474-DGA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | LE450 (WH) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 2ND (UO2SIP-21) | 6G9T-14474-DGA | ||||
| 2 | LE449 (VT-GN) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 2ND (UREF-21) | 6G9T-14474-DGA | ||||
| 3 | CE236 (GY-VT) | 18 | CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 2ND (HTR21) | 6G9T-14474-DGA | ||||
| 4 | CBK02 (GN) | 18 | FUSE - 2 OR CIRCUIT BREAKER (VPWR 2) | 6G9T-14474-DGA | ||||
| 5 | LE453 (BN-BU) | 18 | CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED 2ND (UO2SIA-21) | 6G9T-14474-DGA | ||||
| 6 | VE827 (WH-GN) | 18 | SENSOR - UNIVERSAL HEATED OXYGEN 2ND (UO2SN-21) | 6G9T-14474-DGA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1549
Service Part Number:
JU2Z-14S411-AHA
Gauge:
18
Pin material:
Silver
Cavities:
6
Vehicle Uses:
- Sensor - O2 (HEGO/ EGO)
