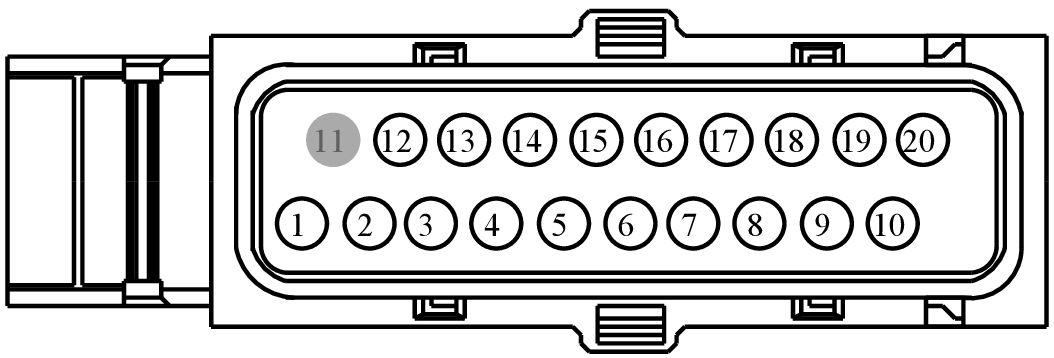

Connector End View (C168) - 6F50/6F55 TRANSMISSION

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C168	6F50/6F55 TRANSMISSION	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CET19 (VT-GY)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE)	N/A
2	VET27 (BN-YE)	20	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)	N/A
3	RE454 (YE-GN)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE	N/A
4	VET29 (VT-WH)	20	SENSOR - TRANSMISSION RANGE # 1 (TR1) [DTRS]	N/A
5	VET30 (YE)	18	SENSOR - TRANSMISSION RANGE # 2 (TR2) [DTRS]	N/A
6	VET31 (BU-OG)	20	SENSOR - TRANSMISSION RANGE # 3 (TR3) [DTRS]	N/A
7	VET32 (VT)	20	SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS]	N/A
8	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	N/A
9	RET24 (BN-BU)	20	CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND)	N/A
10	RET04 (YE-OG)	20	CTRL MOD. - POWERTRAIN # SENSOR OUTPUT SHAFT SPEED (OSS)	N/A
11	*	*	Not Used	N/A
12	CET08 (BN-WH)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD)	N/A
13	CET05 (BU-GN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA)	N/A
14	CET10 (BU-GY)	20	TORQUE CONVERTER CLUTCH (TCC) SOLENOID	N/A
15	CET25 (BU-GN)	18	CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC)	N/A
16	CET06 (GN-BN)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB)	N/A
17	CET07 (GY-OG)	20	CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC)	N/A
18	CET09 (YE-VT)	20	LINE PRESSURE CONTROL (LPC)	N/A
19	RET33 (WH-VT)	20	SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) -	N/A
20	LE111 (VT-GN)	20	CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR)	N/A

Available Pigtail Kits

Pigtail Kit Part Number WPT-1203

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-ACB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses:
