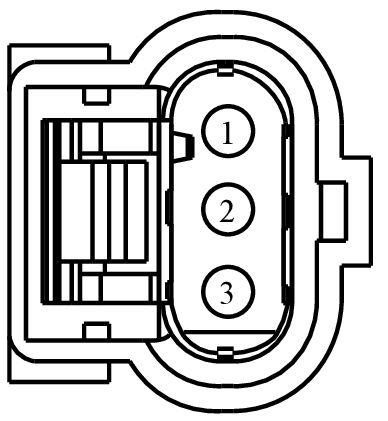

Connector End View (C163) - CABIN HEATER COOLANT PUMP
| Connector: | Description | Color | Harness | Base Part # | Service Pigtail | |
|---|---|---|---|---|---|---|
| C163 | CABIN HEATER COOLANT PUMP | 14A280 | #N/A | See Below | ||
| Terminal Part Number | Service Part Number | Size |
|---|---|---|
| AU5T-14474-MA | Not Available |
| Pin | Circuit | Gauge | Circuit Function | Qualifier | Terminal Part Number | |||
|---|---|---|---|---|---|---|---|---|
| 1 | GD120 (BK-GN) | 20 | GROUND - FENDER FRONT LEFT | 1.5L | N/A | |||
| 1 | GD120 (BK-GN) | 18 | GROUND - FENDER FRONT LEFT | AU5T-14474-MA | ||||
| 2 | CBK03 (GY) | 18 | FUSE - 3 OR CIRCUIT BREAKER (VPWR 3) | AU5T-14474-MA | ||||
| 3 | CH307 (GY-BU) | 18 | CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR) | AU5T-14474-MA | ||||
Available Pigtail Kits
Pigtail Kit Part Number WPT-1530
Service Part Number:
BU2Z-14S411-ARB
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Coil - Ignition
- Lamp - Front Turn
- Lamp - Park/Turn
- Module - Handsfree Liftgate Entry
- Monitor - Crankcase Ventilation
- Motor - Intercooler Pump
- Pump - Auxiliary Heater
- Pump - Coolant Module
- Pump - Transfer Case Coolant
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
- Sensor - Crankcase Pressure
- Sensor - Fuel Low Pressure
- Sensor - Particulate Delta Pressure
- Sensor - Particulate Filter Delta Pressure
- Solenoid - Wastegate Vacuum
- Switch - Deck Lid / Hatch Release
Pigtail Kit Part Number WPT-1202
Service Part Number:
BU2Z-14S411-ARA
Gauge:
18
Pin material:
Silver
Cavities:
3
Vehicle Uses:
- Actuator - Turbocharger Waste Gate
- Coil - Ignition
- Sensor - Cam Shaft Position
- Sensor - Crank Shaft Position
