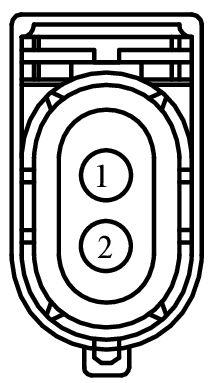

Connector End View (C162) - FOG LAMP, RIGHT FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C162	FOG LAMP, RIGHT FRONT	15K867			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1F1T-14474-FA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF34 (YE-OG)	20	CTRL MOD. - FOG LAMPS FRONT RIGHT OR COMMON	1F1T-14474-FA
2	GD120 (BK-GN)	20	GROUND - FENDER FRONT LEFT	1F1T-14474-FA

Available Pigtail Kits

Pigtail Kit Part Number WPT-904

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-GA

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Lamp - Ash Tray
• Lamp - Fog/Driving
