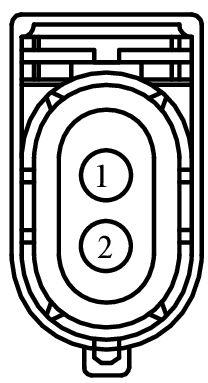

Connector End View (C152) - FOG LAMP, LEFT FRONT

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C152	FOG LAMP, LEFT FRONT	15K867			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
1F1T-14474-EA	DU2Z-14474-FA	2.8

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CLF29 (BN)	22	CTRL MOD. - FOG LAMPS FRONT (LEFT)	1F1T-14474-EA
2	GD120 (BK-GN)	22	GROUND - FENDER FRONT LEFT	1F1T-14474-EA

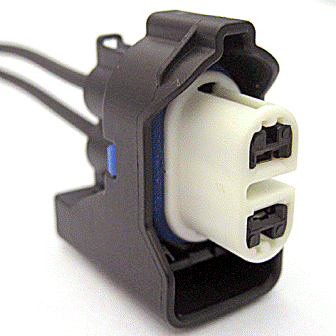

Available Pigtail Kits

Pigtail Kit Part Number WPT-904

Courtesy of FORD MOTOR COMPANY

Service Part Number:

8U2Z-14S411-GA

Gauge:

14

Pin material:

Tin

Cavities:

2

Vehicle Uses:

• Lamp - Ash Tray
• Lamp - Fog/Driving
