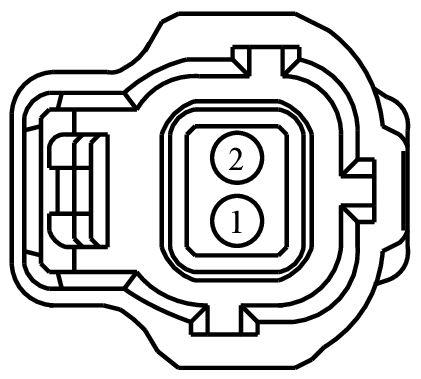

Connector End View (C129) - INTAKE AIR TEMPERATURE (IAT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C129	INTAKE AIR TEMPERATURE (IAT) SENSOR	12A581			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
98AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE740 (GY-VT)	20	SENSOR - INTAKE AIR TEMPERATURE (IAT)	98AG-14474-AA
2	RE407 (YE-VT)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (C-SIGRTN) (SIGRTN-C)	98AG-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-322

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-JZA

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Resistor - Daytime Running Lamp (DRL)
• Sensor - Air Charge Temperature
• Sensor - Brake Pressure
• Solenoid - Canister Vent
• Switch - Brake Pressure
