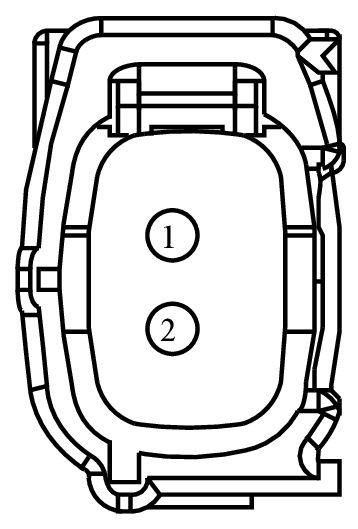

Connector End View (C119) - FUEL INJECTION PUMP

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C119	FUEL INJECTION PUMP	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
BU5T-14474-PA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	CE226 (YE-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) +	BU5T-14474-PA
2	RE226 (GN-VT)	16	CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) -	BU5T-14474-PA

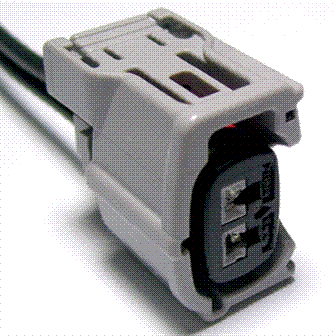

Available Pigtail Kits

Pigtail Kit Part Number WPT-1433

Courtesy of FORD MOTOR COMPANY

Service Part Number:

FU2Z-14S411-ACA

Gauge:

16

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Solenoid - Fuel Volume Regulator Control
