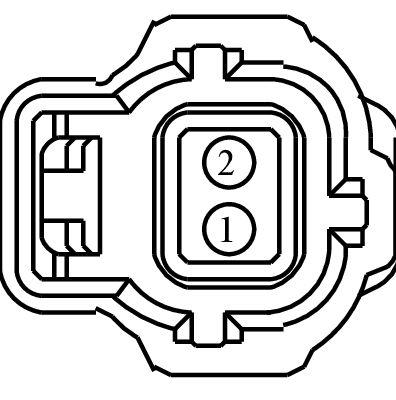

Connector End View (C107) - CYLINDER HEAD TEMPERATURE (CHT) SENSOR

Connector:	Description	Color	Harness	Base Part #	Service Pigtail
C107	CYLINDER HEAD TEMPERATURE (CHT) SENSOR	12C508			#N/A	See Below

Courtesy of FORD MOTOR COMPANY

Terminal Part Number	Service Part Number	Size
96AG-14474-AA	Not Available

Pin	Circuit	Gauge	Circuit Function	Qualifier	Terminal Part Number
1	VE712 (BU-GY)	20	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)	96AG-14474-AA
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)	96AG-14474-AA

Available Pigtail Kits

Pigtail Kit Part Number WPT-985

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MDB

Gauge:

14

Pin material:

Tin (greased)

Cavities:

2

Vehicle Uses:

• Lamp - Running Board
• Lamp - Side Marker
• Sensor - Cylinder Head Temperature
