Battery Cables - 1.5L EcoBoost (118kW/160PS) - I4: Removal
NOTE:
This procedure provides information about routing, retaining points and connectors of the cable. It does not include the steps for removing components to gain access to the cable.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
-

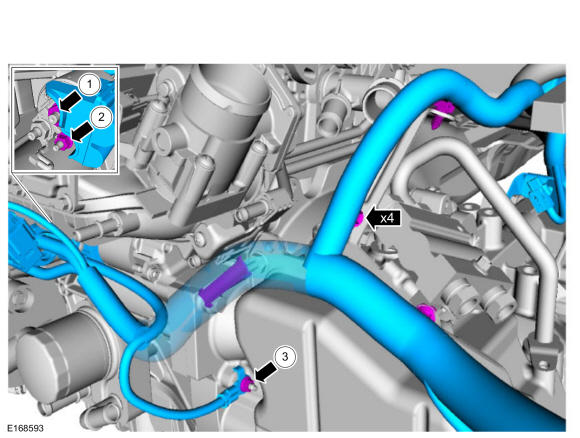

- Torque: 44 lb.in (5 Nm)
- Torque: 106 lb.in (12 Nm)
- Torque: 106 lb.in (12 Nm)

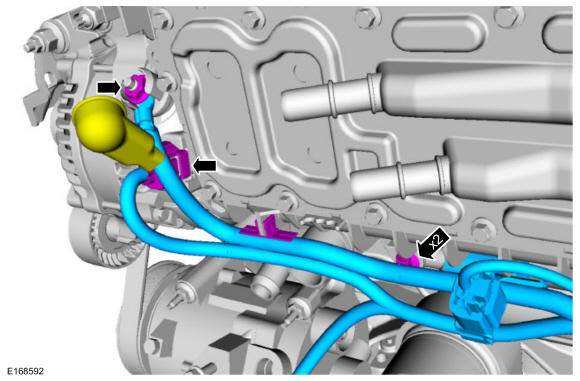

- Torque: 44 lb.in (5 Nm)

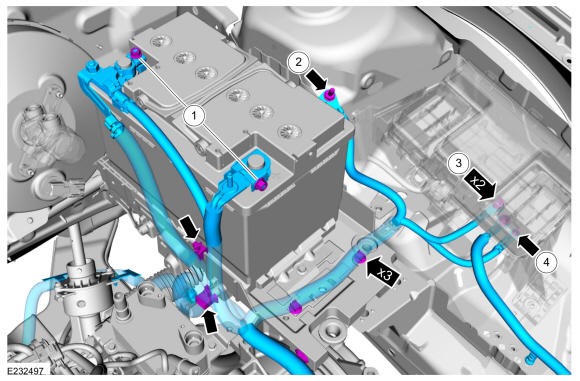

- Torque: 106 lb.in (12 Nm)
-
- Torque: 106 lb.in (12 Nm)

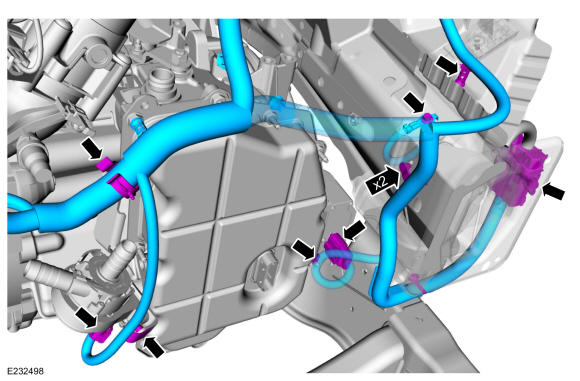

- Torque: 53 lb.in (6 Nm)

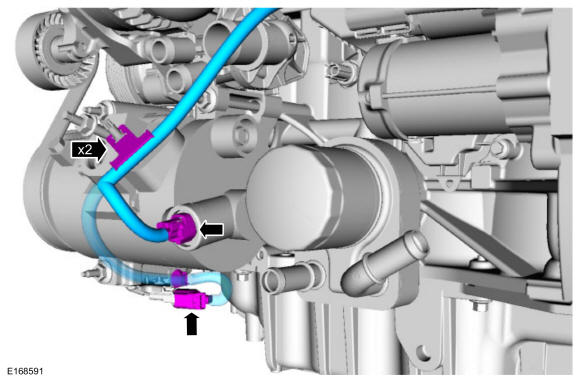

- Torque: 89 lb.in (10 Nm)
- Torque: 150 lb.in (17 Nm)
