Front Brake Disc Shield: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the brake disc. Refer to: Brake Disc .

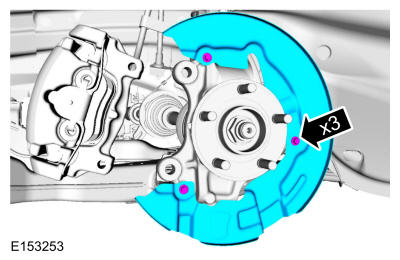

  2. Remove the bolts and brake disc shield.

    Torque

    : 106 lb.in (12 Nm)

GFD479135Courtesy of FORD MOTOR COMPANY
