Roof Opening Panel Shield: Removal

NOTE: Removal steps in this procedure may contain installation details.

On both sides, remove the A-pillar trim panel. Refer to: A-Pillar Trim Panel .
On both sides, remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .
On both sides, remove the C-pillar upper trim panel. Refer to: C-Pillar Upper Trim Panel .

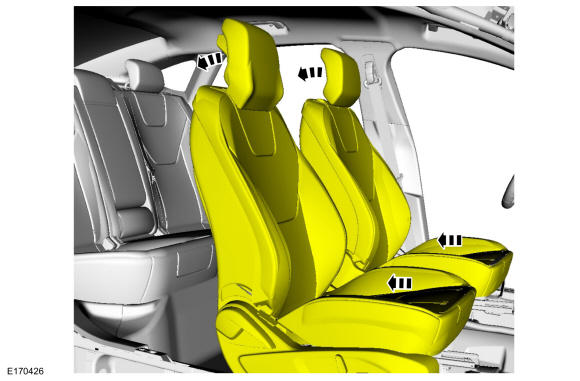

Position both front seats in the full rearward and full reclined position.

Courtesy of FORD MOTOR COMPANY
If equipped.

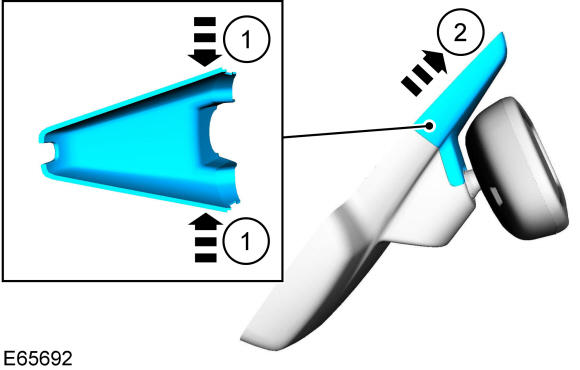

1. Release the upper rear view mirror cover clips.
2. Remove the upper rear view mirror cover.
Courtesy of FORD MOTOR COMPANY
If equipped.

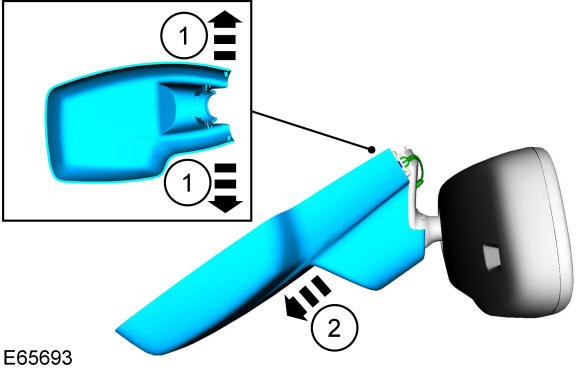

1. Release the lower rear view mirror cover clips by squeezing on the sides.
2. Remove the lower rear view mirror cover.
Courtesy of FORD MOTOR COMPANY

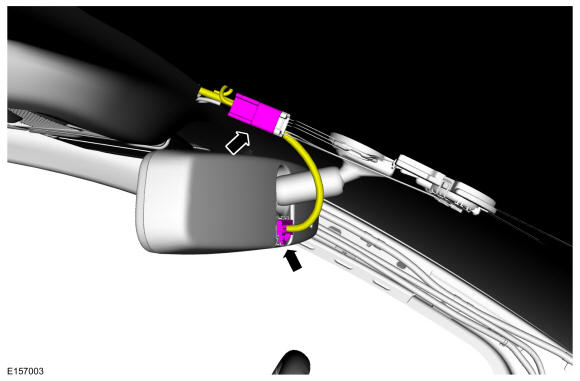

If equipped. Disconnect the rear view mirror electrical connectors.

Courtesy of FORD MOTOR COMPANY

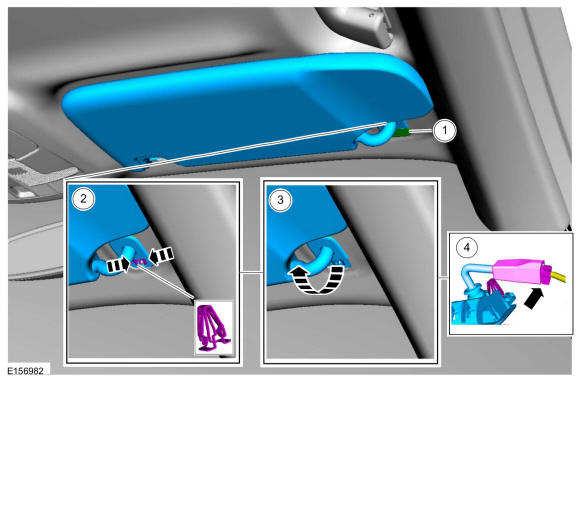

On both sides. Remove the sun visors.
1. Remove the retainer cap.
2. Release the clip.
3. Remove the sun visor.
4. If equipped. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY

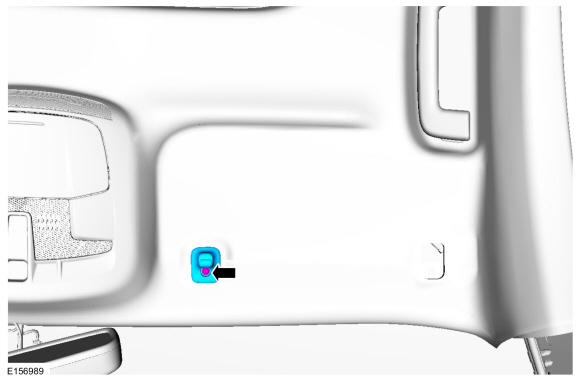

On both sides. Remove the retainer and the sun visor clip.

Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

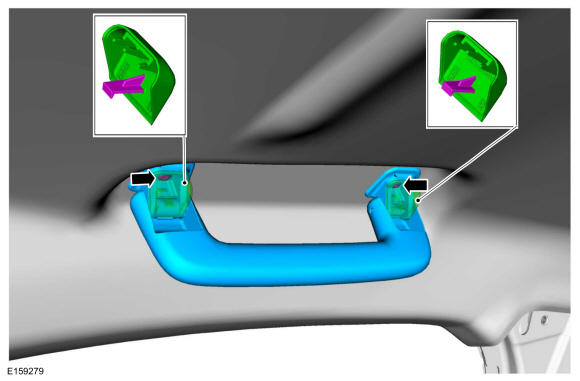

On both sides. Remove the retainer covers, the retainers and the grab handle.

Courtesy of FORD MOTOR COMPANY
NOTE: Disconnect as necessary to lower the headliner.

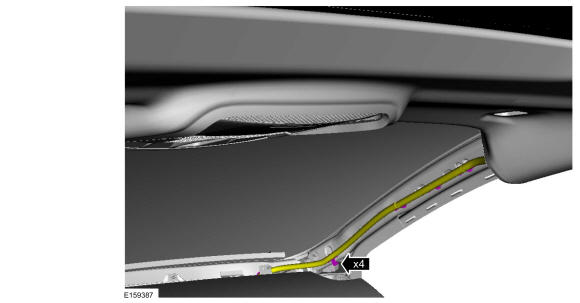

On both sides. Detach the wire harness retainers.

Courtesy of FORD MOTOR COMPANY

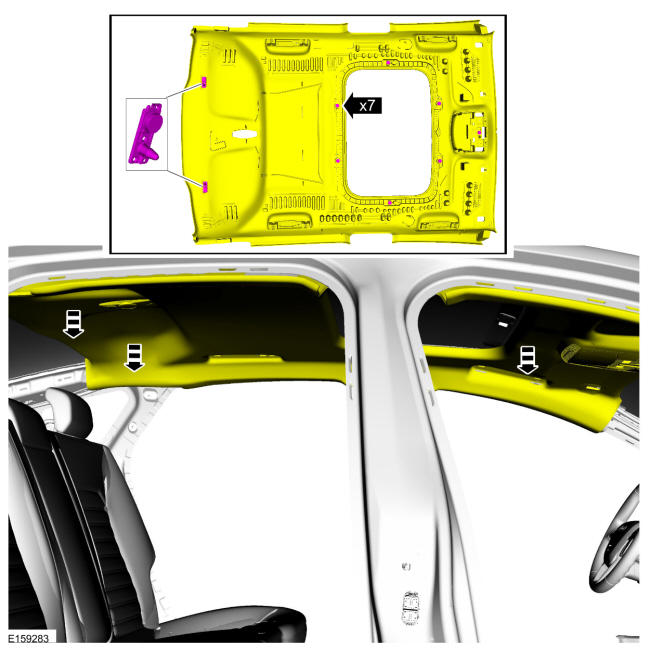

NOTE: When releasing the magnets around the roof opening panel area, pull down on the plastic headliner reinforcement between the headliner and the roof or damage to the headliner may result.

Release the seven magnets and two guide pins and magnets.

Courtesy of FORD MOTOR COMPANY

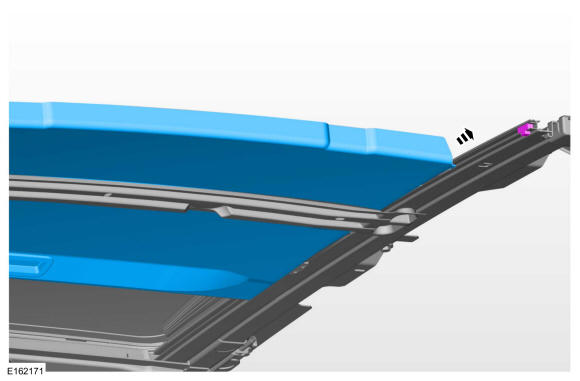

On both sides. Remove the retainer, slide the roof opening panel shield rearward and remove the roof opening panel shield out of the guide track.

Courtesy of FORD MOTOR COMPANY
