Roof Opening Panel Glass: Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.
Refer to: Health and Safety Precautions .

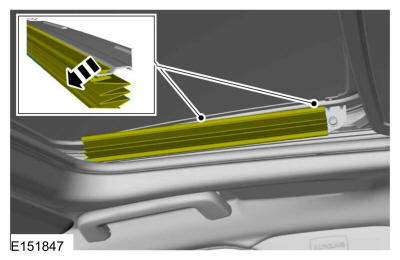

- On both sides. Detach the top portion of the roof opening panel blind and fold it down to get access to the roof opening panel glass retainers.
-
NOTE: Blind removed for clarity.
On both sides. Remove the retainers.
Torque: 53 lb.in (6 Nm)
- Remove the roof opening panel glass assembly.
