Roof Opening Panel Blind: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  2. Remove the air deflector. Refer to: Air Deflector .

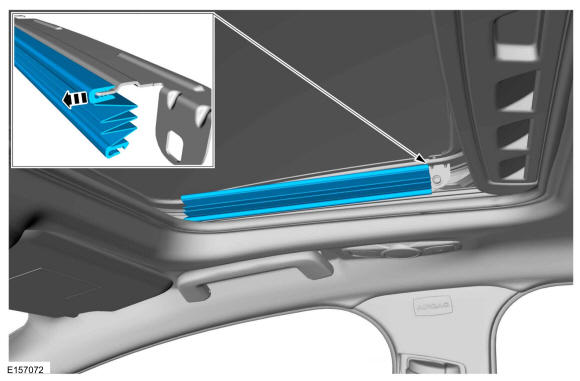

  3. On both sides. Detach and remove the top portion of the roof opening panel blind.
    GFD485311Courtesy of FORD MOTOR COMPANY

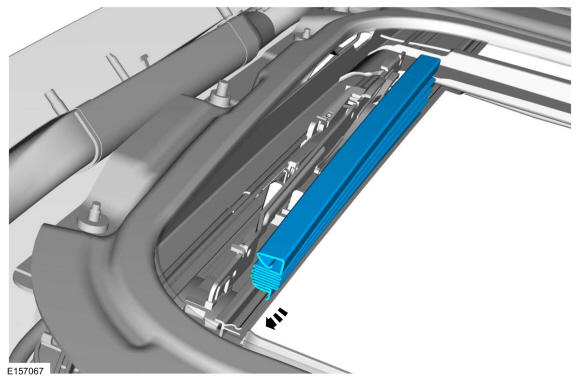

  4. On both sides. Slide the roof opening panel blind forward and up out of the guide track.
GFD485312Courtesy of FORD MOTOR COMPANY
