Rear Seat Cushion: Removal

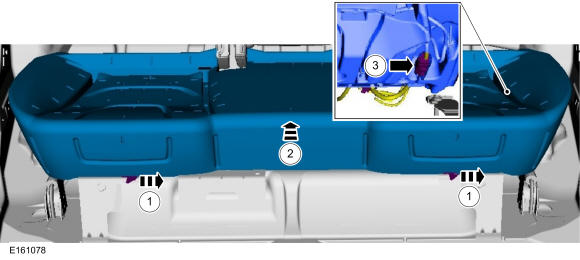

  1. Remove the rear seat cushion.

    1. Release the locking tabs.
    2. Position the rear seat cushion upward.
    3. If equipped with heated seats. Disconnect the electrical connector.

GFD485105Courtesy of FORD MOTOR COMPANY
