Rear Seat Backrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The 40 percent backrest must be removed to allow removal of the 60 percent backrest.

All backrests

Remove the rear LH seatbelt buckle. Refer to: Rear Seatbelt Buckle LH .
1. Lift the rear seat latch release handle.
2. Lower the rear seat backrest.
Courtesy of FORD MOTOR COMPANY
If equipped with heated seats. Disconnect the heated seat electrical connector.

Courtesy of FORD MOTOR COMPANY

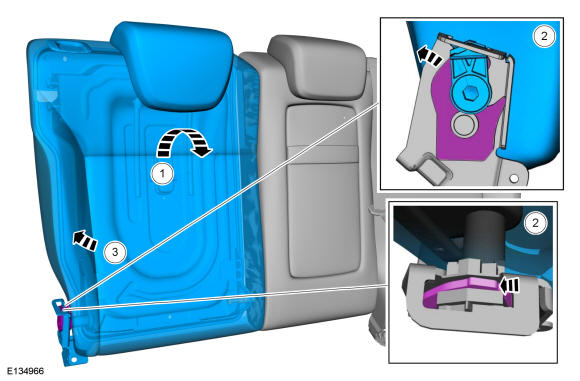

1. Lower the backrest.
2. Rotate the backrest hinge locking arm rearward and release the backrest.
3. Remove the 40 percent seat backrest.
Courtesy of FORD MOTOR COMPANY

60 percent backrest

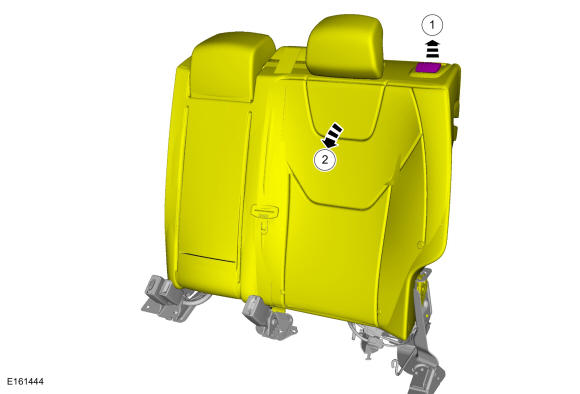

1. Lift the rear seat latch release handle.
2. Lower the rear seat backrest.
Courtesy of FORD MOTOR COMPANY
If equipped with heated seats. Disconnect the heated seat electrical connectors.

Courtesy of FORD MOTOR COMPANY
1. Lower the backrest.
2. Rotate the backrest hinge locking arm rearward and release the backrest.
3. Remove the 60 percent seat backrest.

Courtesy of FORD MOTOR COMPANY
