Rear Seat Armrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear seat cushion. Refer to: Rear Seat Cushion .
1. Lift the rear seat latch release handle.
2. Lower the rear seat backrest.
Courtesy of FORD MOTOR COMPANY
If equipped with heated seats. Disconnect the heated seat electrical connector.

Courtesy of FORD MOTOR COMPANY
1. Lower the backrest.
2. Rotate the backrest hinge locking arm rearward and release the backrest.
3. Remove the seat backrest.
Courtesy of FORD MOTOR COMPANY
Unzip the backrest cover, release the backrest cover J-clips and remove the bolts.
Torque

: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

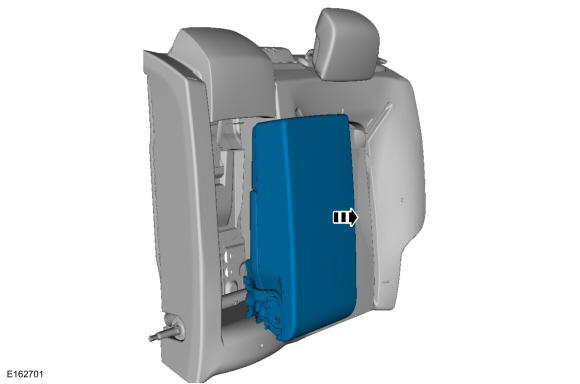

Remove the rear seat armrest.

Courtesy of FORD MOTOR COMPANY
