Front Seat Cushion Blower Motor: Removal

All seats

1. Remove the front seat. Refer to: Front Seat  .
2. Remove the side shield screws.

   Courtesy of FORD MOTOR COMPANY

3. Remove the side shield.
   1. Lift up on the rear of the side shield and pull outward.
   2. Push the side shield forward.
   3. Disconnect the electrical connector.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: For passenger seats equipped with an OCS service kit, the OCS will be adhered to the bottom of the seat cushion foam.

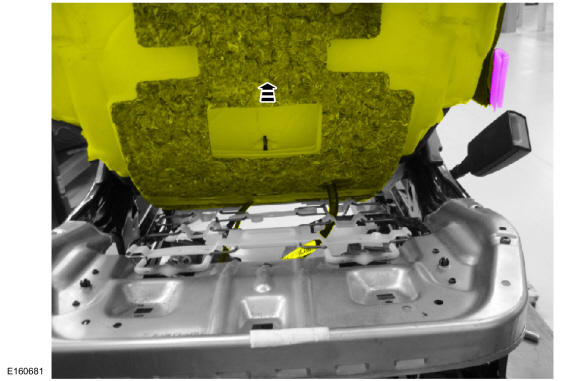

   Release the J-clips and position the front of the seat cushion cover and foam assembly slightly upwards.

   Courtesy of FORD MOTOR COMPANY

   Passenger seat

5. NOTE: Original equipment (OE) OCS shown, service kit similar.

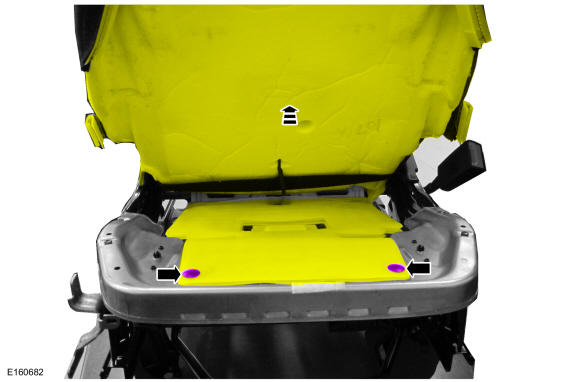

   Position the front seat cushion and cover assembly upward and remove the OCS pin-type retainers.

   Courtesy of FORD MOTOR COMPANY

6. Position the front of the OCS upward.

   Courtesy of FORD MOTOR COMPANY

   All seats

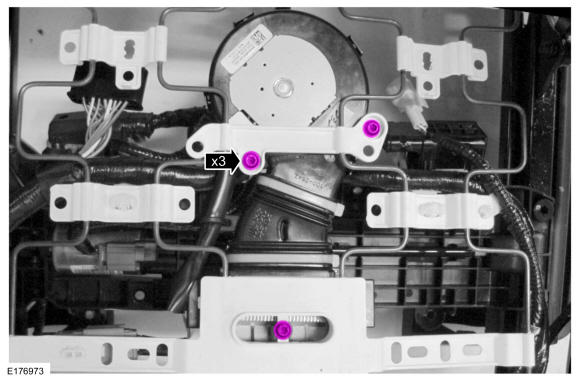

7. Remove the front seat cushion blower motor screws.

   Courtesy of FORD MOTOR COMPANY

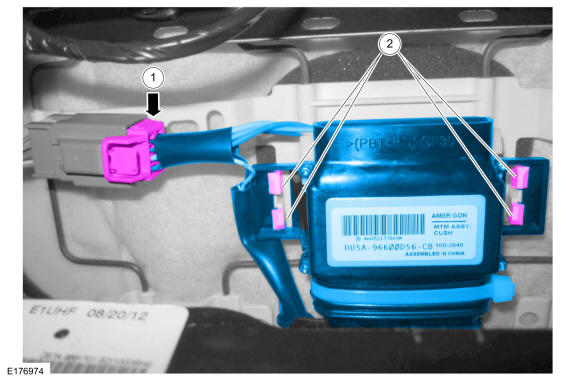

8. Remove the front seat cushion blower motor.
   1. Disconnect the front seat cushion blower motor electrical connector.
   2. Release the locking tabs.

Courtesy of FORD MOTOR COMPANY
