Front Seat Backrest Blower Motor: Removal

Remove the front seat. Refer to: Front Seat .

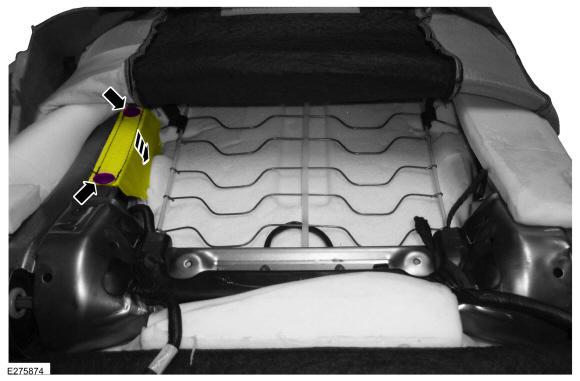

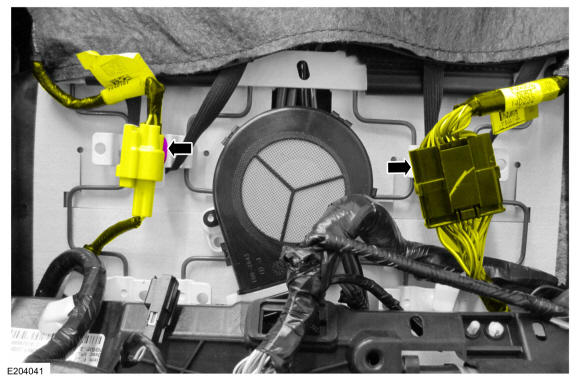

Detach the electrical connector retainers and position the wire harnesses aside.

Courtesy of FORD MOTOR COMPANY

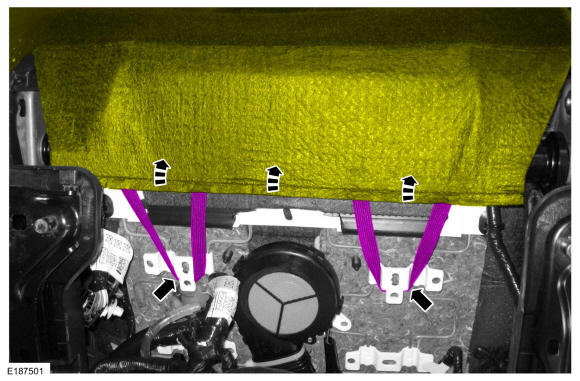

Detach the backrest cover straps and position the backrest cover upward.

Courtesy of FORD MOTOR COMPANY

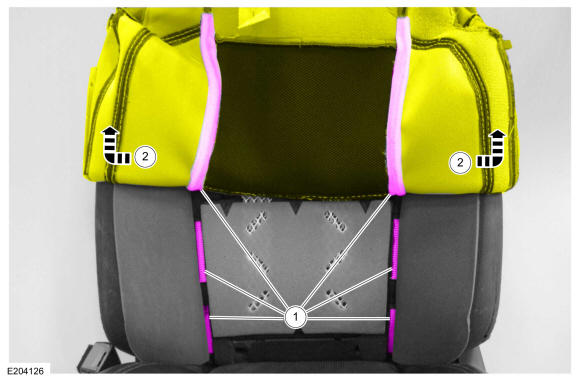

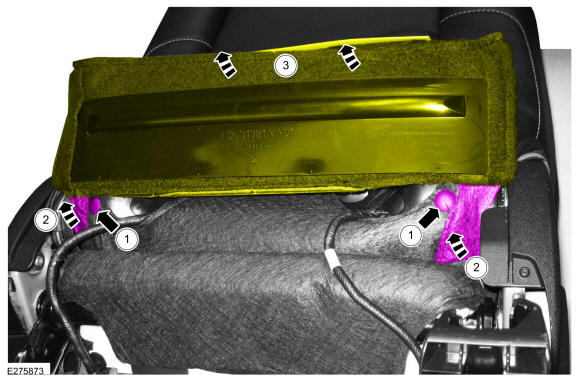

1. Remove the pin-type retainers.
2. Detach the hook-and-loop strips.
3. Lift the backrest cover flap.
Courtesy of FORD MOTOR COMPANY

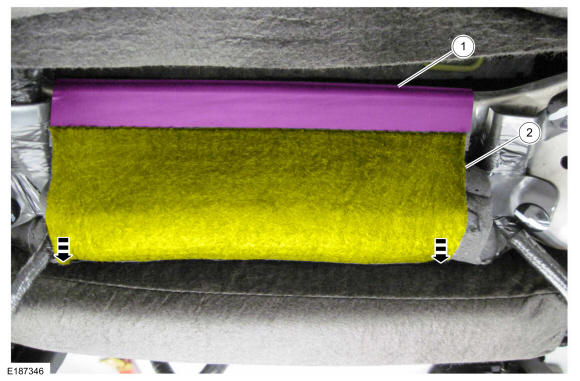

Position the front seat backrest cover.
1. Release the J-clip.
2. Position the backrest cover from between the seat cushion and backrest cushion.
Courtesy of FORD MOTOR COMPANY

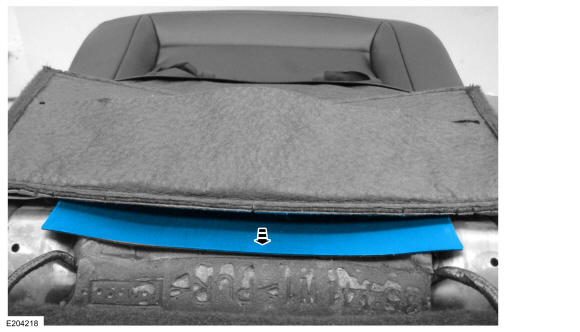

Remove the backrest cover insert.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the backrest trim cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the backrest foam.

Partially invert the backrest cover enough to access the hog rings.
1. Release the hook-and-loop strips.
2. Invert the backrest cover.
Courtesy of FORD MOTOR COMPANY

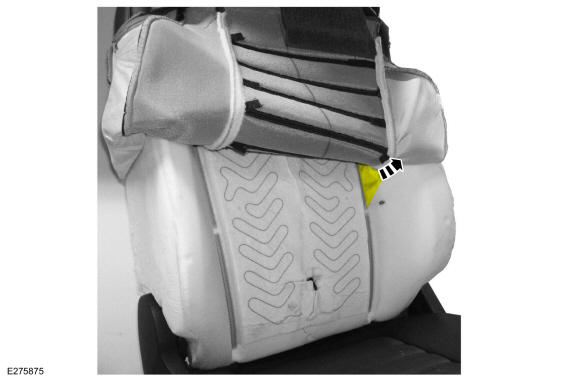

Remove the pin-type retainers from the deployment chute wrap and begin feeding it through the backrest foam.

Courtesy of FORD MOTOR COMPANY
Pull the deployment chute wrap out of the backrest foam.

Courtesy of FORD MOTOR COMPANY

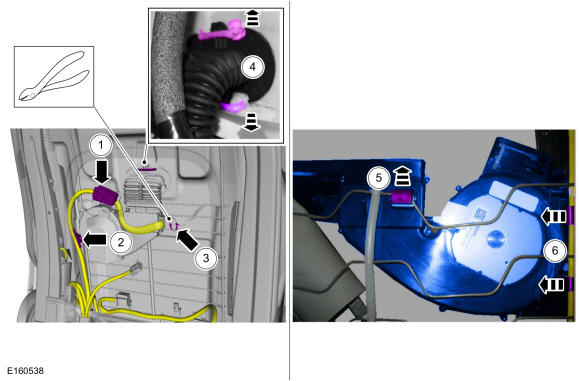

1. Disconnect the front seat backrest blower motor electrical connector.
2. Release the wire harness retainer.
3. Cut the tie strap.
4. Release the front seat backrest blower motor from the front seat backrest cushion.
5. Release the front seat backrest blower motor horizontal retainer.
6. Release the vertical retainers and remove the front seat backrest blower motor.
