Front Subframe - 1.5L EcoBoost (118kW/160PS) - I4 2.0L EcoBoost (184kW/250PS) - MI4 2.5L Duratec (125kW/170PS): Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

NOTE: Disconnect the battery ground cable anytime the steering gear is being serviced or damage to the steering gear internal power relay may occur resulting in steering gear replacement.

Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

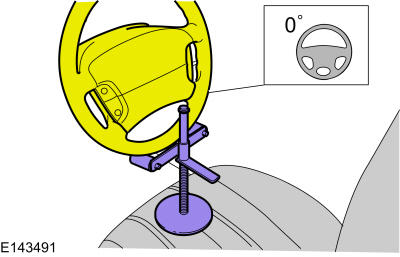

Steering wheel in straight ahead position.

Courtesy of FORD MOTOR COMPANY
WARNING: Do not reuse steering column shaft bolts. This may result in fastener failure and steering column shaft detachment or loss of steering control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

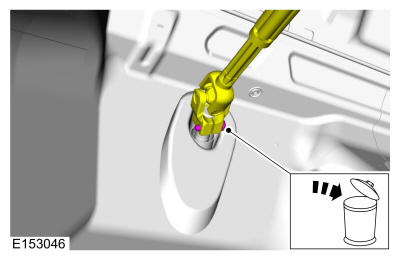

Remove and discard the steering column shaft coupler bolt and separate the coupler from the steering shaft.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and the radiator sight shield.

Courtesy of FORD MOTOR COMPANY
Remove the upper radiator grommets.

Courtesy of FORD MOTOR COMPANY
Remove the wheels and tires. Refer to: Wheel and Tire .
If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the front air deflectors.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the retainers, bolts, and underbody air deflector.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the retainers, bolts, and underbody air deflector.

Courtesy of FORD MOTOR COMPANY
NOTE: Index-mark the subframe for reference during installation.

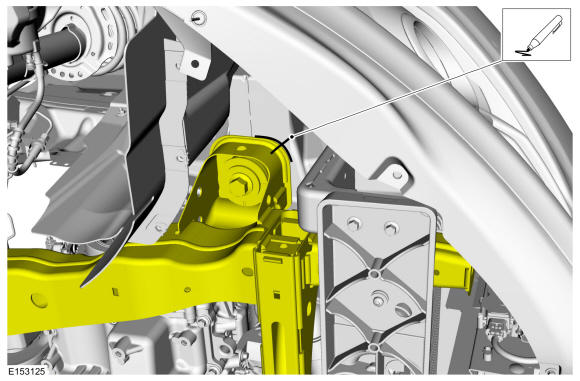

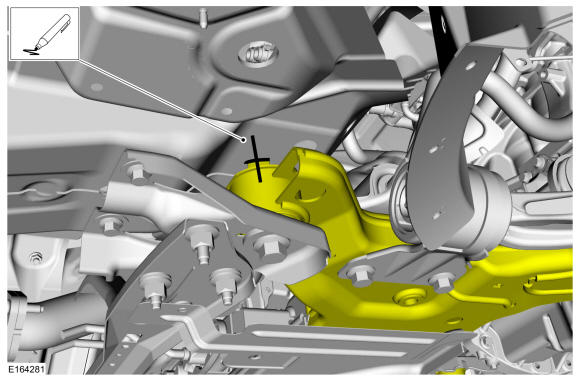

On both sides. Mark the position of front subframe.

Courtesy of FORD MOTOR COMPANY
NOTE: Index-mark the subframe for reference during installation.

On both sides. Mark the position of front subframe.

Courtesy of FORD MOTOR COMPANY

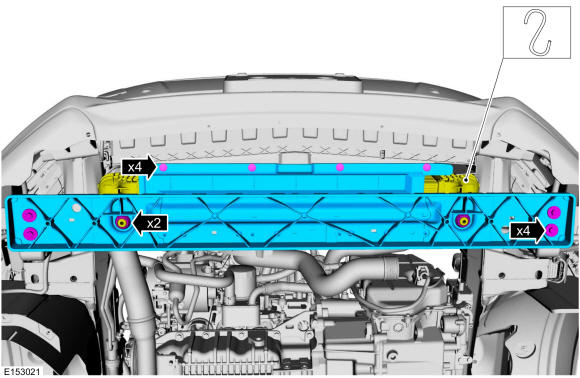

NOTE: Support the radiator.

Remove the retainers and remove the radiator core support.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.

NOTE: Use care when installing the tie rod separator or damage to the outer tie-rod end boot may occur.

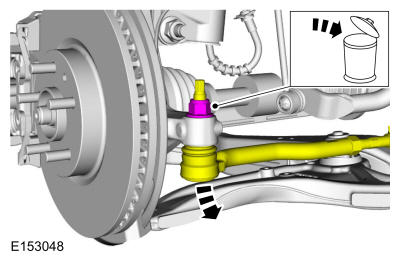

On both sides. Remove and discard the tie rod end nut and separate the tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover

Courtesy of FORD MOTOR COMPANY
NOTE: The stabilizer bar links are designed with low friction ball joints that have a low breakaway torque.

NOTE: Use the hex-holding feature to prevent the ball stud from turning while removing or installing the stabilizer bar link nut.

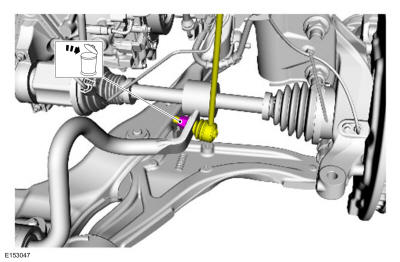

On both sides. Remove and discard the stabilizer bar link lower nut and position aside the stabilizer bar link.

Courtesy of FORD MOTOR COMPANY
NOTE: The front suspension height sensor must be disconnected from the lower control arm prior to servicing suspension components or damage to the suspension height sensor and/or the vehicle dynamic suspension system may occur. The sensor will need to be recalibrated after reassembly.

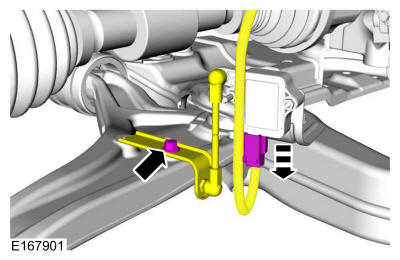

On both sides. Disconnected the front suspension height sensor electrical connectors. Remove the bolt and position the bracket aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use a prying device or separator fork between the ball joint and the wheel knuckle. Damage to the ball joint or ball joint seal may result. Only use the pry bar by inserting it into the lower arm body opening.

NOTE: Use care when releasing the lower arm and wheel knuckle into the resting position or damage to the ball joint seal may occur.

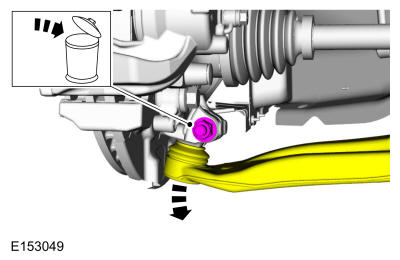

On both sides. Remove and discard the ball joint pinch bolt and nut and separate the ball joint from the wheel knuckle.

Courtesy of FORD MOTOR COMPANY

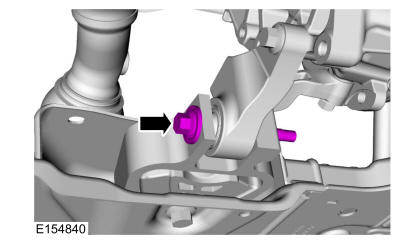

Remove the roll restrictor bolt.

Courtesy of FORD MOTOR COMPANY
If equipped. Unclip and position aside the electrical harness.

Courtesy of FORD MOTOR COMPANY
Remove the retainers and remove the cross brace.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the exhaust support bracket bolts.

Courtesy of FORD MOTOR COMPANY

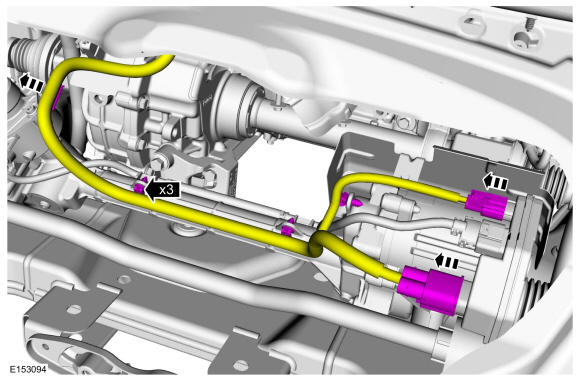

All except 1.5L EcoBoost. Disconnect the EPAS gear electrical connectors and unclip the harness retainers and position the harness aside.

Courtesy of FORD MOTOR COMPANY

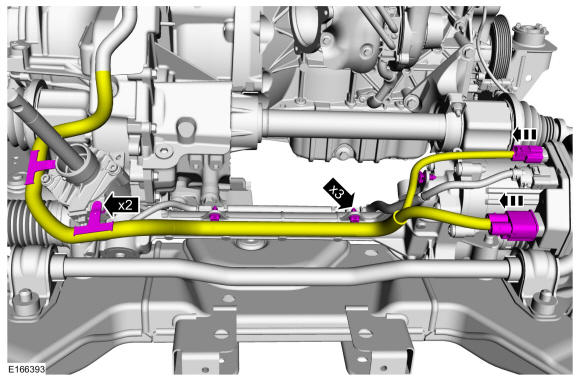

1.5L EcoBoost. Disconnect the EPAS gear electrical connectors and unclip the harness retainers and position the harness aside.

Courtesy of FORD MOTOR COMPANY

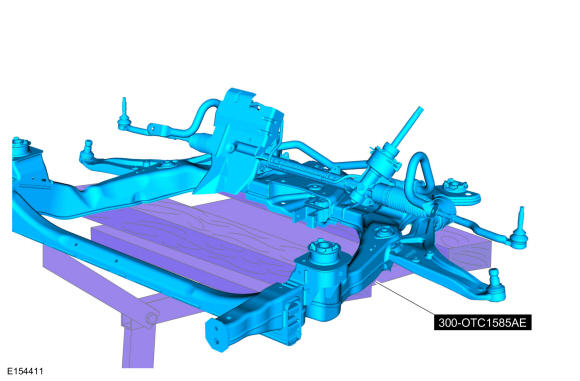

Position a powertrain lift under the front subframe. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY

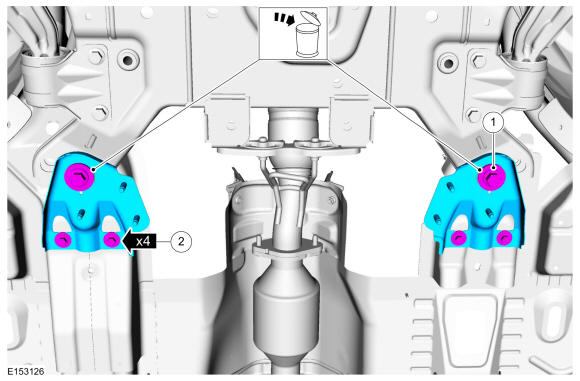

1. Remove and discard the rearward front subframe bolts.
2. Remove the bracket bolts.
Courtesy of FORD MOTOR COMPANY

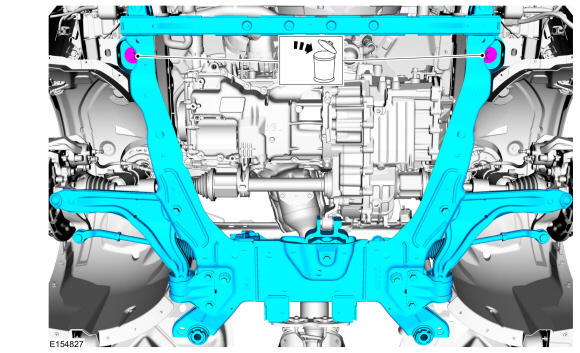

Remove and discard the forward front subframe bolts.

Courtesy of FORD MOTOR COMPANY
Lower the subframe. Use Special Service Tool: 300-OTC1585AE Powertrain Lift. Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
