Removal And Installation: Hood: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- Open hood.

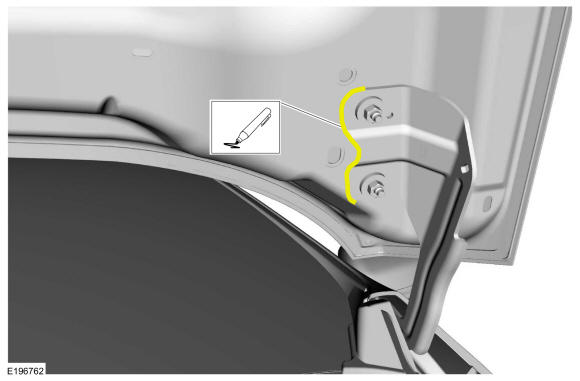

- On both sides. Index-mark the hood hinge location to aid in hood installation.
-
NOTE: An assistant is necessary for the support and removal of the hood.

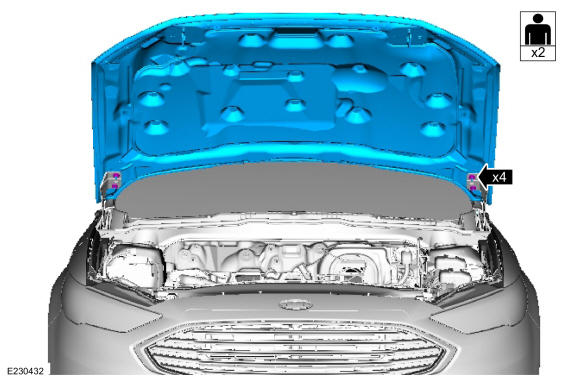

Remove the nuts and the hood.
Torque: 18 lb.ft (25 Nm)
-
NOTE: This step is only necessary when installing a new component.

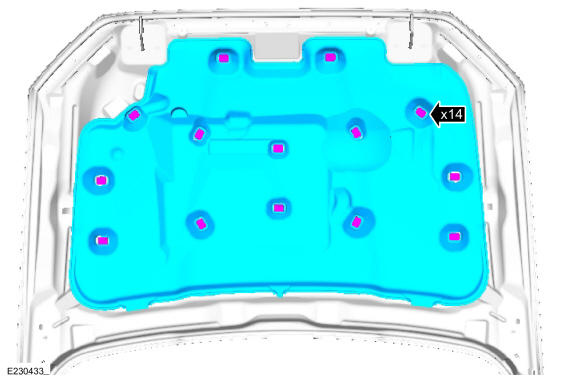

Remove the pin-type retainers and the hood insulation.
-
NOTE: This step is only necessary when installing a new component.

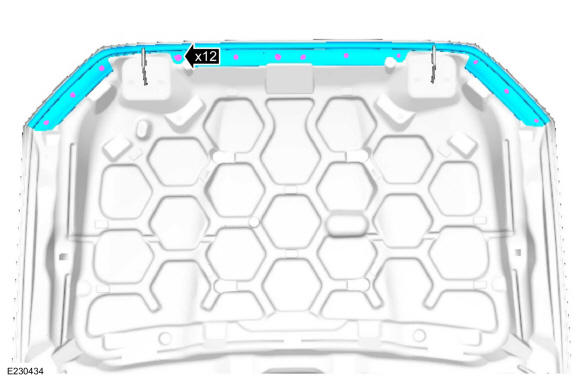

Remove the pin-type retainers and the hood pad assembly.
