Front Bumper: Removal

All vehicles

1. Remove the front bumper cover. Refer to: Front Bumper Cover .

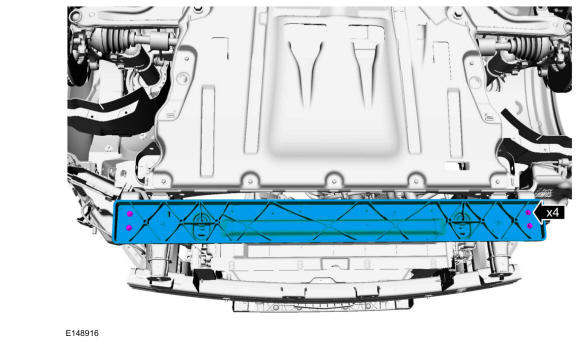

2. Remove the bolts and the lower radiator support.

   Torque

   : 177 lb.in (20 Nm)

   Courtesy of FORD MOTOR COMPANY

3. If equipped, remove the CCM and bracket. Refer to: Cruise Control Module (CCM) .
4. Remove the headlamp assemblies. Refer to: Headlamp Assembly .
5. Remove the horn assemblies. Refer to: Horn .

   Vehicles equipped with active grille shutters

6. Remove the active grille shutter. Refer to: Active Grille Shutter .

   Vehicles not equipped with active grille shutters

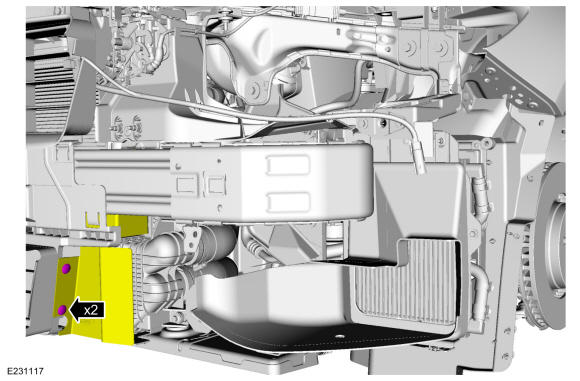

7. On both sides. Remove the pin-type retainers and position the radiator side air deflector aside.

   Courtesy of FORD MOTOR COMPANY

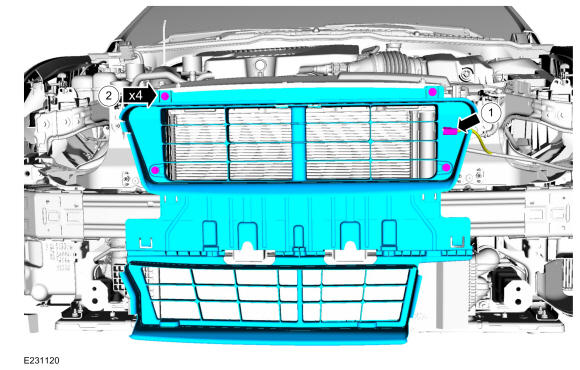

8. Remove the radiator air deflector.
   1. Separate the wiring harness from the radiator air deflector.
   2. Remove the bolts.

      Torque

      : 53 lb.in (6 Nm)

   Courtesy of FORD MOTOR COMPANY

   All vehicles

9. NOTE: The bolts are accessed from behind the front bumper brackets.

   Remove the bolts.

   Torque

   : 177 lb.in (20 Nm)

   Courtesy of FORD MOTOR COMPANY

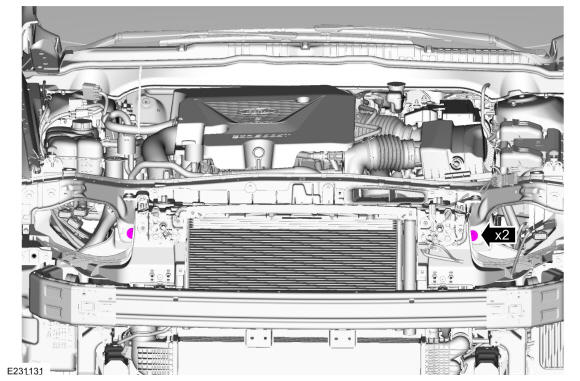

10. Remove the front bumper adjuster bolts.

    Torque

    : 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

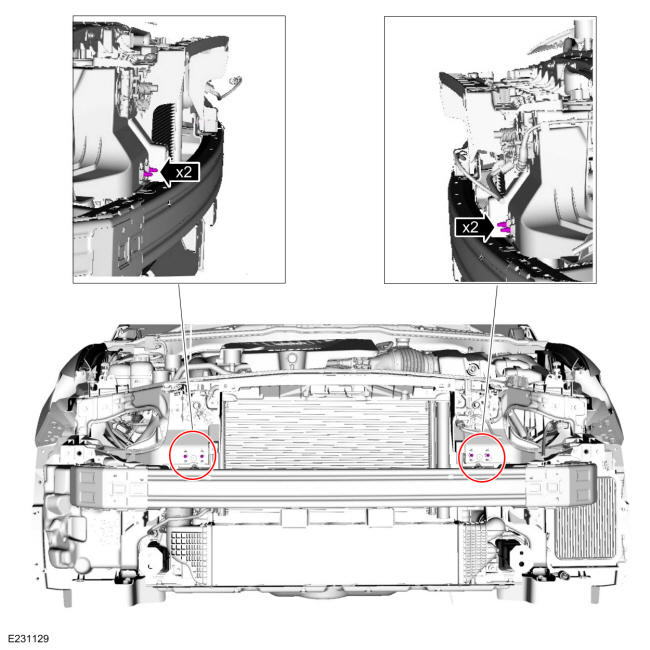

11. Remove the lower front bumper nuts.

    Torque

    : 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

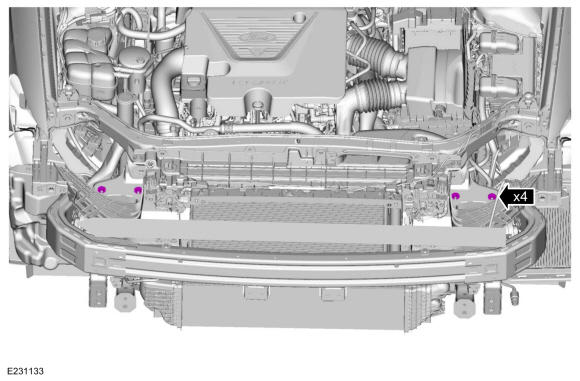

12. Remove the upper front bumper nuts.

    Torque

    : 18 lb.ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

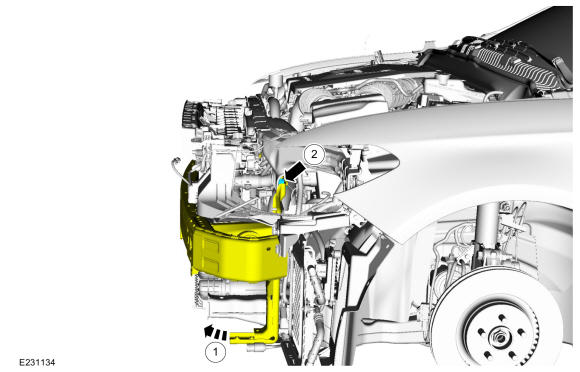

13. On both sides.
    1. Rotate the front bumper upward pivoting on the upper bumper studs.
    2. Remove the bumper adjusters.

    Courtesy of FORD MOTOR COMPANY

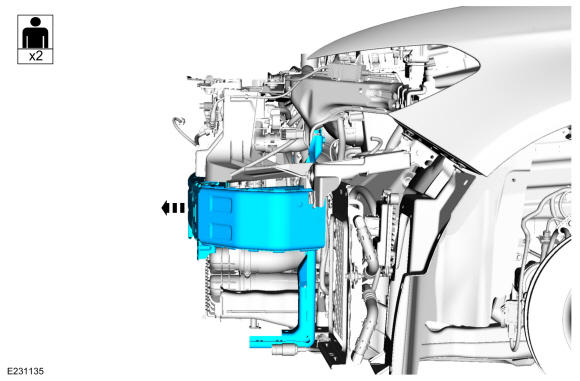

14. Remove the front bumper.

Courtesy of FORD MOTOR COMPANY
