Luggage Compartment Lid Hinge: Removal

NOTE: Left hand (LH) side shown, right hand (RH) side similar.
  1. Remove the luggage compartment lid.
  2. Remove the parcel shelf trim. Refer to: Parcel Shelf .
  3. Loosen but do not remove the hinge fasteners.
    GFD484839Courtesy of FORD MOTOR COMPANY

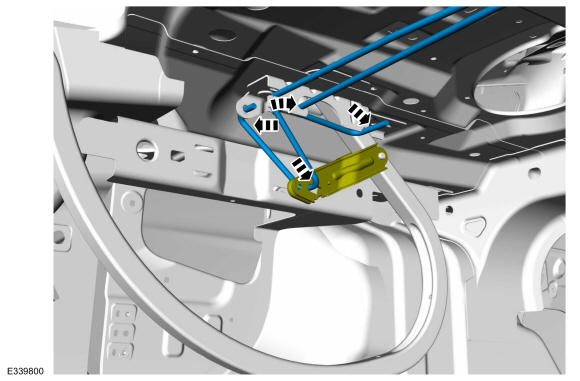

  4. Remove the luggage compartment lid torsion springs.
    GFD484840Courtesy of FORD MOTOR COMPANY
  5. Remove the fasteners.
    GFD484841Courtesy of FORD MOTOR COMPANY
  6. Remove the luggage compartment lid hinge.
GFD484842Courtesy of FORD MOTOR COMPANY
