Passive Anti-Theft System (PATS) Center Antenna: Removal

NOTE: Removal steps in this procedure may contain installation details.

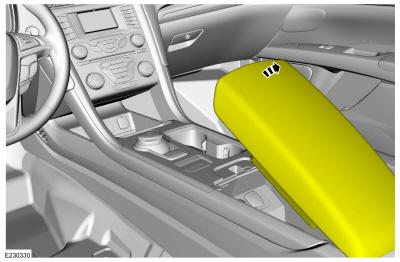

Open the floor console stowage bin lid.

Courtesy of FORD MOTOR COMPANY

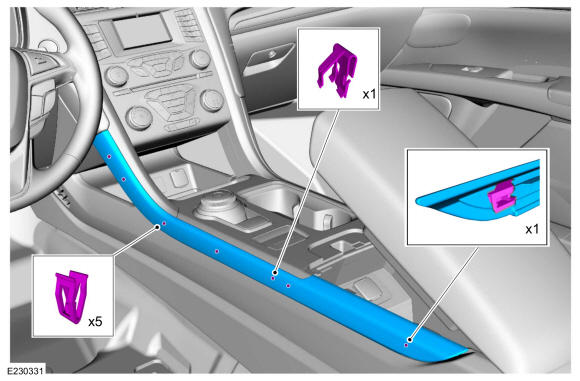

On both sides. Detach the clips and remove the floor console upper side finish panel.

Courtesy of FORD MOTOR COMPANY

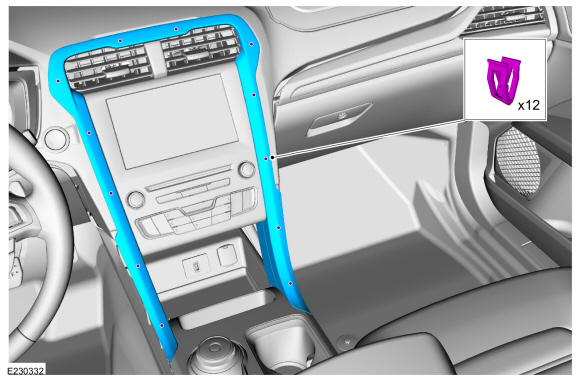

Detach the clips and remove the instrument panel center finish panel.

Courtesy of FORD MOTOR COMPANY

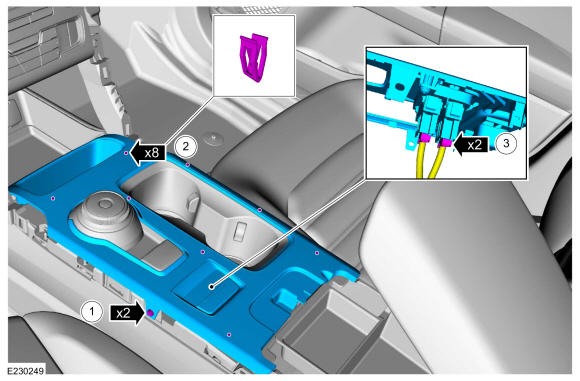

1. Remove the screws.
2. Detach the clips.
3. Remove the upper floor console finish panel and disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY

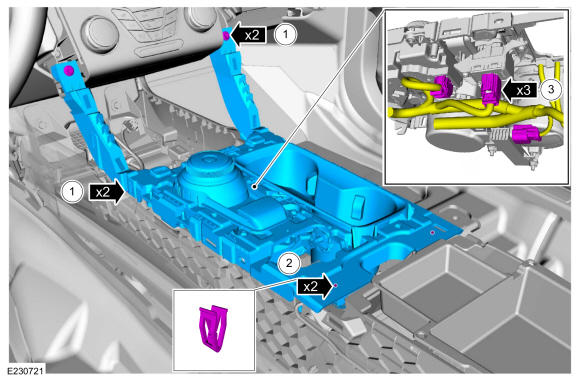

1. Remove the screws.
2. Detach the clips.
3. Remove the floor console upper support and disconnect the electrical connectors.
Courtesy of FORD MOTOR COMPANY
Remove the nuts and the PATS center antenna.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
