Ignition Lock Cylinder Housing: Removal

  1. WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.

    Follow the health and safety precautions. Refer to: Health and Safety Precautions .

  2. Remove the SCCM. Refer to: Steering Column Control Module (SCCM) .
  3. Remove the RH side bolt.
    GFD479304Courtesy of FORD MOTOR COMPANY

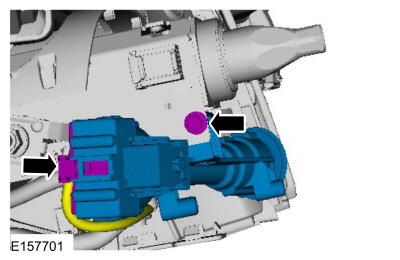

  4. Disconnect the electrical connector and remove the LH side bolt.
GFD479305Courtesy of FORD MOTOR COMPANY
