Ignition Lock Cylinder Housing: Installation

NOTE: The ignition lock cylinder housing bolts must be tightened in the order of the following steps. Otherwise, binding of the ignition cylinder and ignition switch may occur.

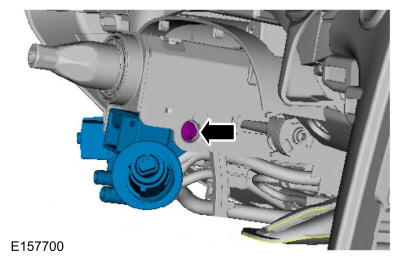

  1. Install the RH side bolt.
    GFD479304Courtesy of FORD MOTOR COMPANY

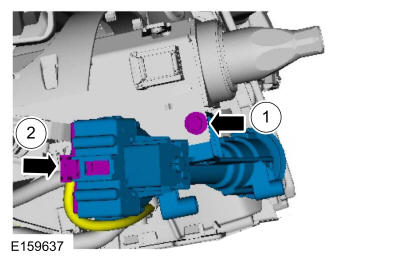

  2. Install the LH side bolt and connect the electrical connector.
    GFD479306Courtesy of FORD MOTOR COMPANY
  3. Install the SCCM. Refer to: Steering Column Control Module (SCCM) .
