Rear Head Restraint Guide Sleeve: Removal

NOTE: 60 percent seat shown, 40 percent seat similar.

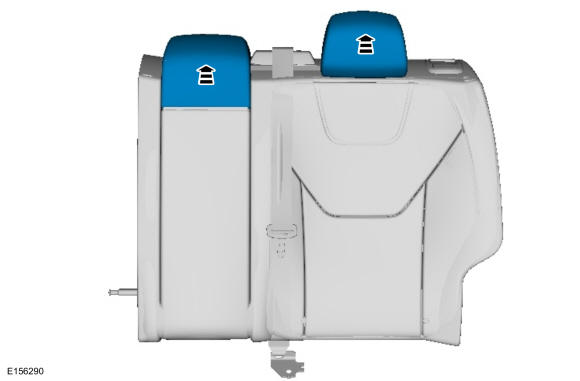

  1. Remove the head restraints.
    GFD485089Courtesy of FORD MOTOR COMPANY

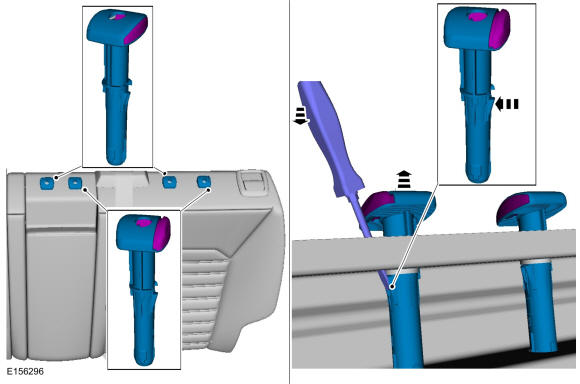

  2. NOTE: Backrest trim cover removed for clarity.

    Release the locking tabs and remove the rear head restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver

GFD485090Courtesy of FORD MOTOR COMPANY
