Rear Active Park Assist Sensors: Removal

WARNING: This page is about a different car, the 2019 Ford SSV Plug-in Hybrid, 2019 Ford Police Responder Hybrid, and 2019 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper cover. Refer to: Rear Bumper Cover .

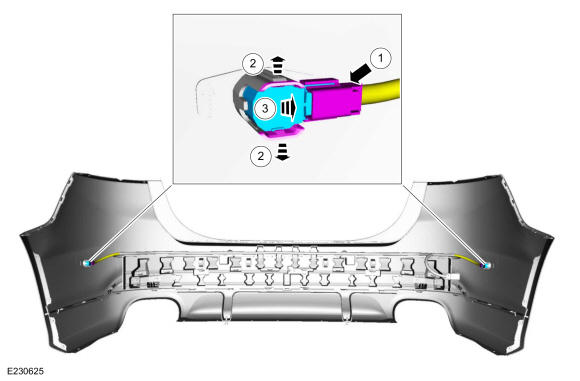

    1. Disconnect the electrical connector.
    2. Release the tabs.
    3. Remove the active park assist sensor.
GFD436457Courtesy of FORD MOTOR COMPANY
