Removal And Installation: Turbocharger: Installation

NOTE: Make sure that the mating faces are clean and free of foreign material.

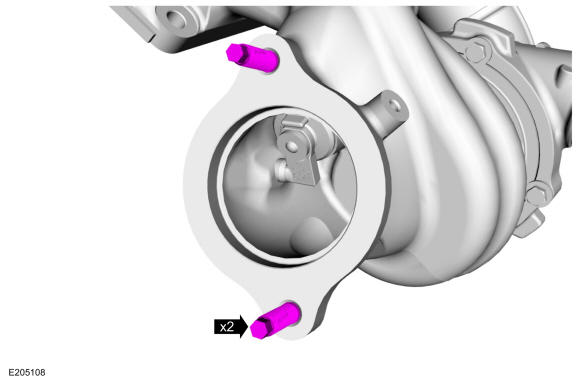

  1. If removed install and then tighten the turbocharger exhaust flange studbolts.

    Torque: 18 lb.ft (25 Nm)

    GFD481926Courtesy of FORD MOTOR COMPANY

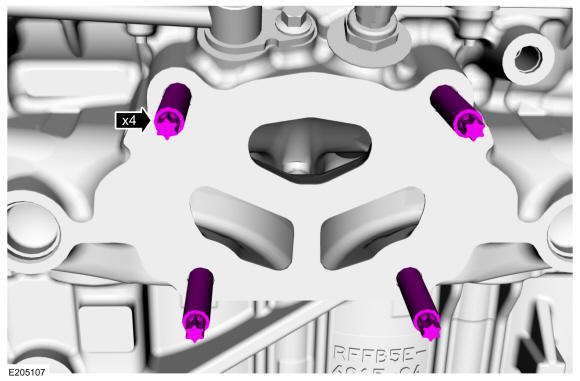

  2. If removed install and then tighten the turbocharger mounting studs.

    Torque: 150 lb.in (17 Nm)

    GFD481925Courtesy of FORD MOTOR COMPANY

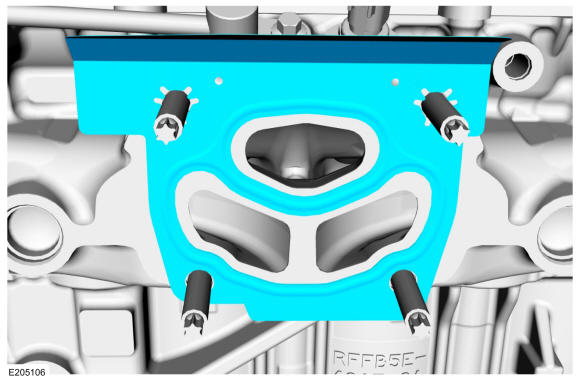

  3. Install the new turbocharger gasket.
    GFD481927Courtesy of FORD MOTOR COMPANY

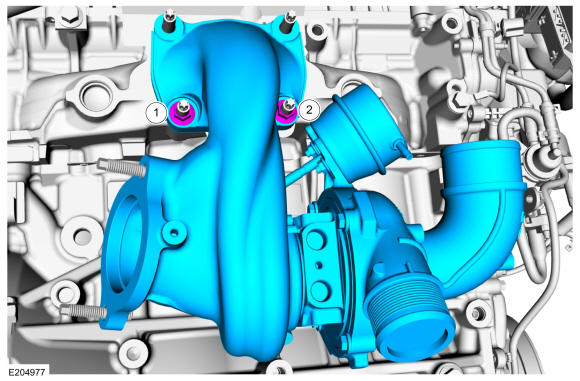

  4. Install the turbocharger, then install and tighten the lower turbocharger mounting nuts.

    Torque: 1 : 37 lb.ft (50 Nm) 2 : 37 lb.ft (50 Nm)

    Fig 1: TC Lower Mounting Nuts Tightening Specifications
    GFD481928Courtesy of FORD MOTOR COMPANY

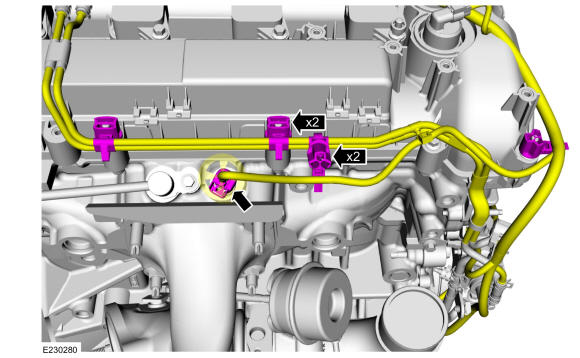

  5. Position and attach the turbocharger control valve vacuum tube retainers. Connect the cylinder head temperature electrical connector and then attach the cylinder head temperature wiring harness retainer.
    GFD481922Courtesy of FORD MOTOR COMPANY
  6. Install a new turbocharger oil return tube O-ring seal and a new turbocharger oil return tube gasket. Lubricate the new turbocharger oil return tube O-ring seal with clean engine oil. Refer to: Specifications .
    GFD481929Courtesy of FORD MOTOR COMPANY

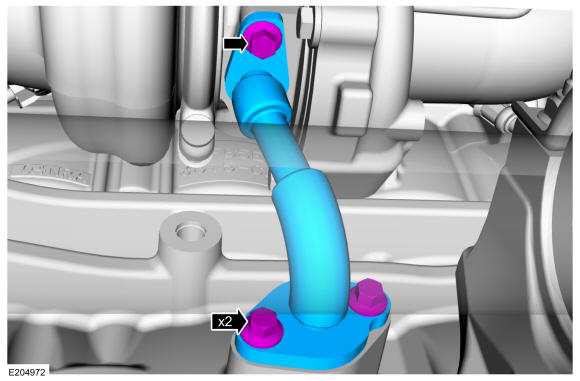

  7. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: The oil return tube must be fully seated prior to fastener rundown.

    Install the turbocharger oil return tube, then install and tighten the turbocharger oil return tube bolts.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: 89 lb.in (10 Nm)

    GFD481920Courtesy of FORD MOTOR COMPANY

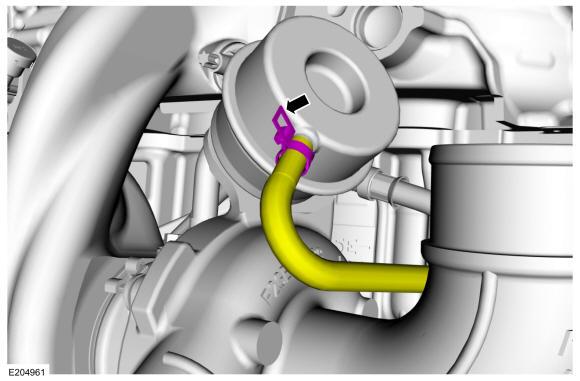

  8. Connect the turbocharger wastegate control hose. Use the General Equipment: Hose Clamp Remover/Installer
    GFD481919Courtesy of FORD MOTOR COMPANY

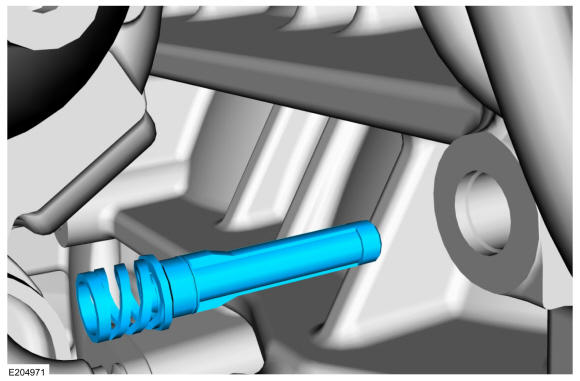

  9. NOTE: Do not reuse the turbocharger oil filter, a new turbocharger oil filter must be installed.

    Install the new turbocharger oil filter.

    GFD481930Courtesy of FORD MOTOR COMPANY

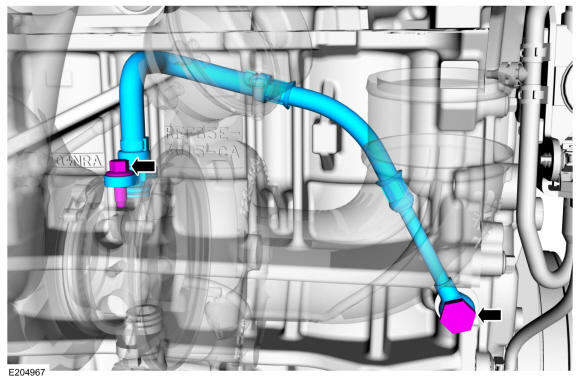

  10. Install a new turbocharger oil supply tube O-ring seal and the new turbocharger oil supply tube sealing washers. Lubricate the new turbocharger oil supply tube O-ring seal with clean engine oil. Refer to: Specifications .
    GFD481931Courtesy of FORD MOTOR COMPANY
  11. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.
    NOTE: The oil supply tube must be fully seated prior to fastener tightening.

    Install the turbocharger oil supply tube and the turbocharger oil supply tube retaining bolts finger tight at this stage.

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Torque: Bolt : 89 lb.in (10 Nm) Banjo bolt : 18 lb.ft (25 Nm) Tighten the Banjo bolt an additional : 50°

    GFD481916Courtesy of FORD MOTOR COMPANY

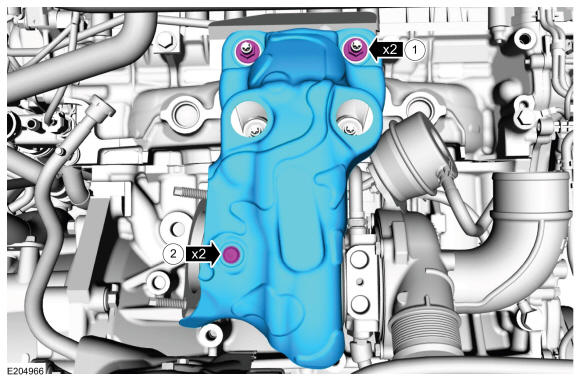

  12. NOTE: Install the turbocharger heat shield, the upper turbocharger mounting nuts and the lower turbocharger heat shield retaining bolt finger tight at this stage.

    1. Tighten the upper turbocharger mounting nuts.

      Torque: 37 lb.ft (50 Nm)

    2. Tighten the lower turbocharger heat shield retaining bolt.

      Torque: 89 lb.in (10 Nm)

    GFD481915Courtesy of FORD MOTOR COMPANY

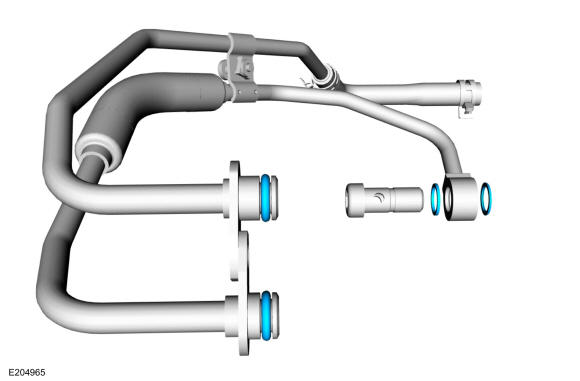

  13. Install the new turbocharger coolant tube sealing washers. Install the new turbocharger coolant tube O-ring seals and lubricate with clean engine coolant. Refer to: Specifications .
    GFD481932Courtesy of FORD MOTOR COMPANY

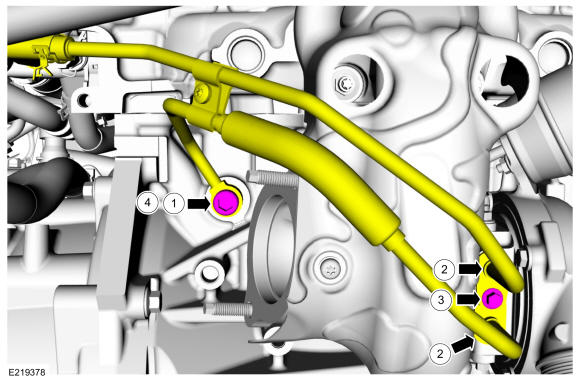

  14. NOTE: Carefully use a nylon brush to remove the old O-ring residue and use brake cleaner to rinse the O-ring residue out of the turbocharger tube to engine O-ring bore. Inspect the area for deep scratches and gouges. DO-NOT USE A METAL BRUSH; DAMAGE TO SEALING AREA WILL RESULT IN LEAKS.

    1. Hand start the turbocharger cooling tube-to-block bolt at this stage.

      Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    2. NOTE: Lubricate the turbocharger cooling tube O-ring seals with clean engine coolant.

      Fit the O-ring end of the turbocharger coolant tubes to the turbocharger. The lower coolant inlet tube goes into the turbocharger first.

    3. Install and tighten the turbocharger coolant tube-to-turbocharger bolt.

      Torque: 89 lb.in (10 Nm)

    4. Tighten the turbocharger coolant tube-to-block bolt.

      Torque: 27 lb.ft (37 Nm)

    GFD481933Courtesy of FORD MOTOR COMPANY

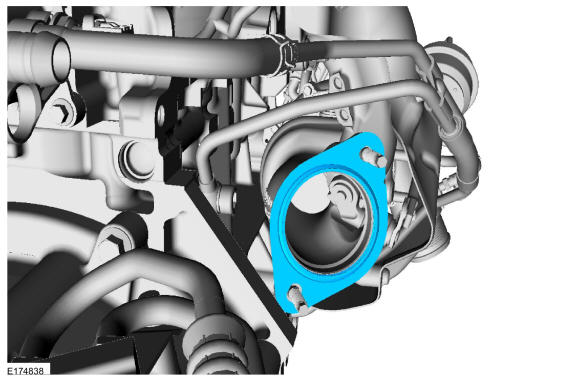

  15. Install the new turbocharger gasket.
    GFD481934Courtesy of FORD MOTOR COMPANY

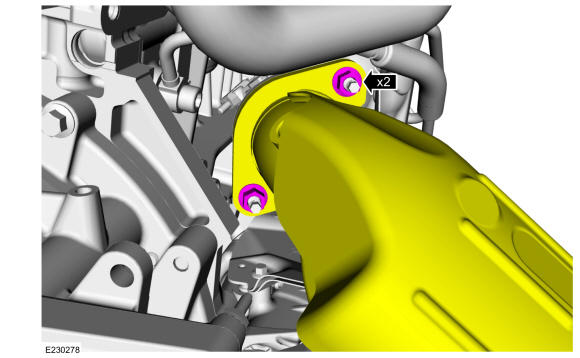

  16. Install the catalytic converter, then install and tighten the catalytic converter retaining nuts.

    Torque: 35 lb.ft (48 Nm)

    GFD481935Courtesy of FORD MOTOR COMPANY
  17. Install the battery tray. Refer to: Battery Tray .

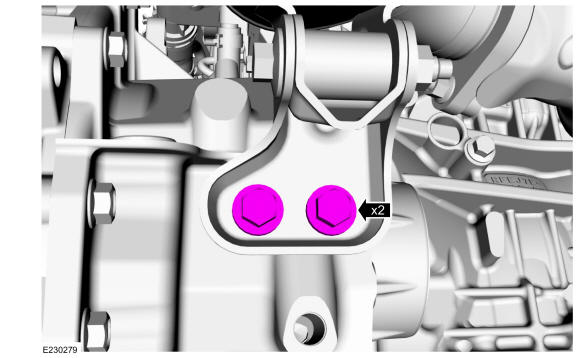

  18. Install and tighten the catalytic converter bracket retaining bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD481910Courtesy of FORD MOTOR COMPANY

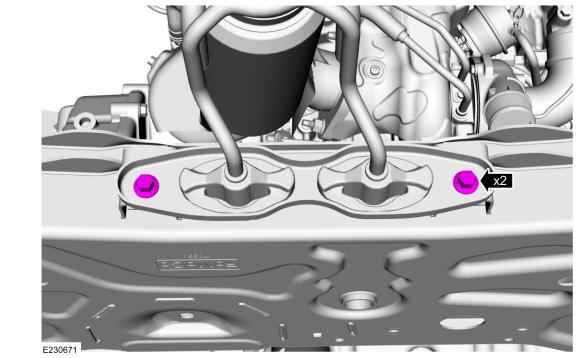

  19. Install and tighten the exhaust isolator bracket bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD481909Courtesy of FORD MOTOR COMPANY

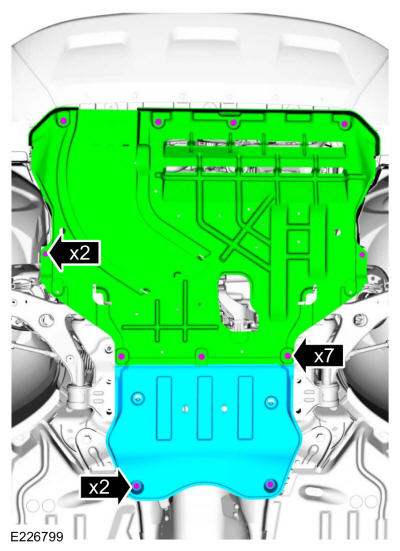

  20. Install the Charge Air Cooler (CAC) Intake Pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    • Install the stone guard and the retainers.

    • Install the underbody shield and the retainers.

    GFD481908Courtesy of FORD MOTOR COMPANY

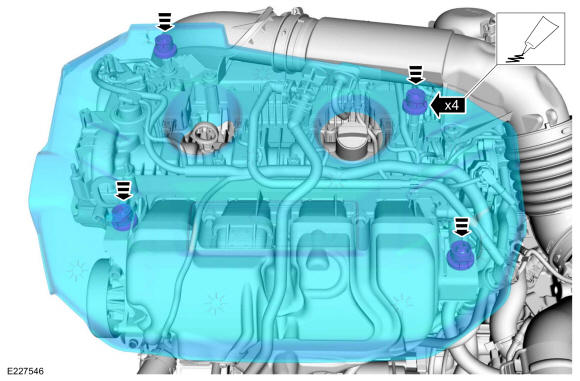

  21. Install the upper and lower Air Cleaner Outlet Pipes. Refer to: Air Cleaner Outlet Pipe .
    1. NOTE: Lubricating the grommets with silicone grease will aid in the installation of the engine appearance cover, and any future removal and installation of the cover.

      Lubricate each grommet with silicone grease.

      Material: Motorcraft® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

    2. If equipped, position the engine appearance cover onto engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
    GFD481936Courtesy of FORD MOTOR COMPANY
  22. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  23. Check and top off the engine oil as needed. Refer to: Specifications .
  24. Check for leaks.
