2.0L EcoBoost Turbocharger Controls

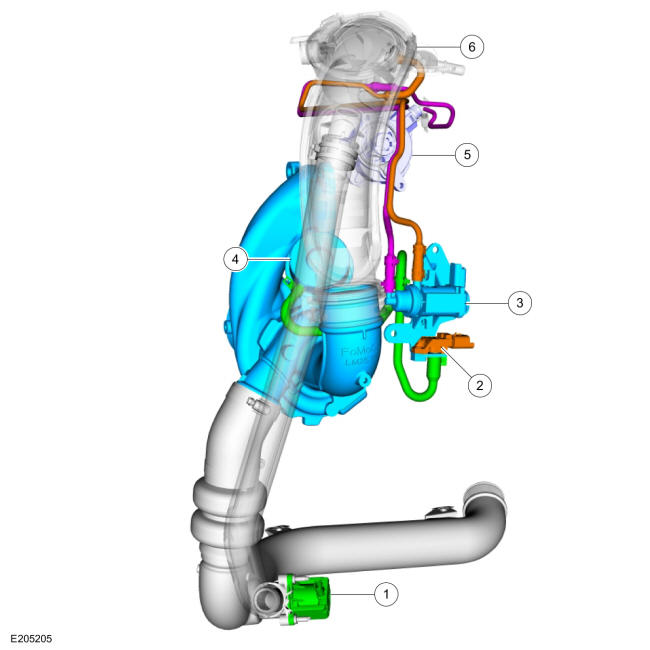

GFD481906Courtesy of FORD MOTOR COMPANY
Item Description
1 Turbocharger bypass valve
2 Wastegate vacuum sensor
3 Wastegate control valve solenoid
4 Wastegate actuator
5 Vacuum pump
6 Air cleaner outlet pipe
