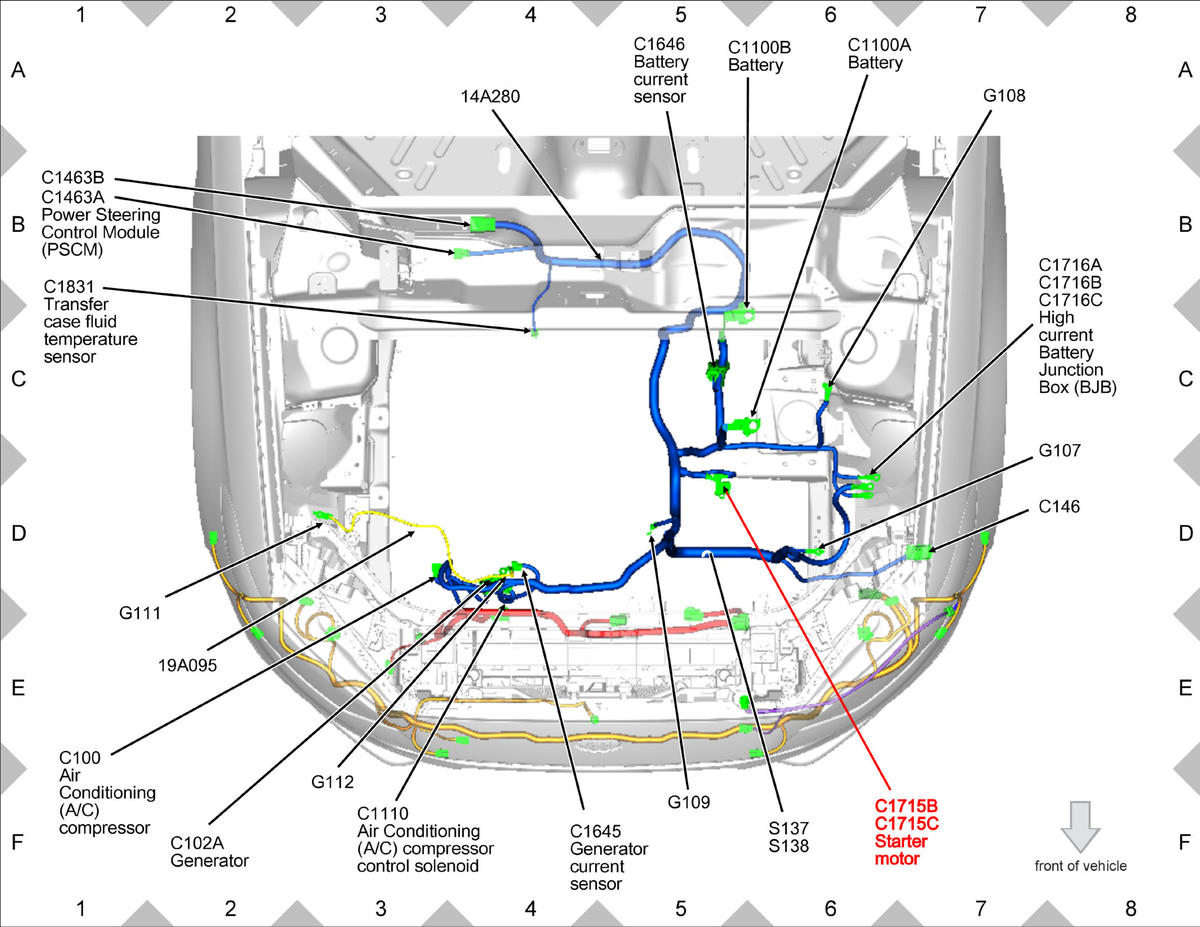

Home >> Ford >> 2020 >> Fusion Titanium, AWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Except Hybrid) >> Component Location Charts by connectors >> C1715C On starter motor
