Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.
NOTE: Consoles look different depending on option level.

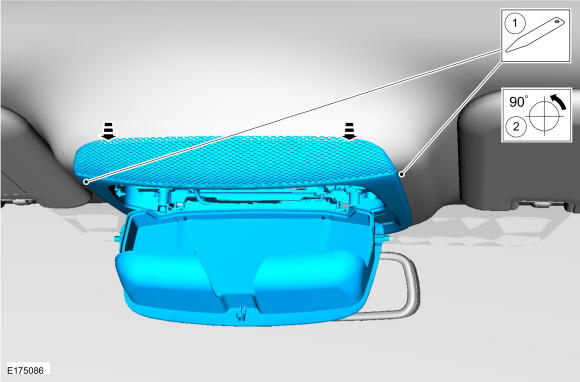

    1. Insert trim tool in location(s) shown.
    2. Rotate the tool 90 degrees to release the overhead console rear retainers.
    GFD485208Courtesy of FORD MOTOR COMPANY

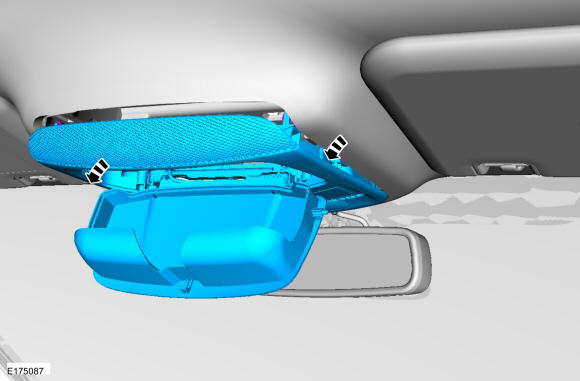

  2. Working from the rear to the front along each side release the overhead console retainers.
    GFD485209Courtesy of FORD MOTOR COMPANY

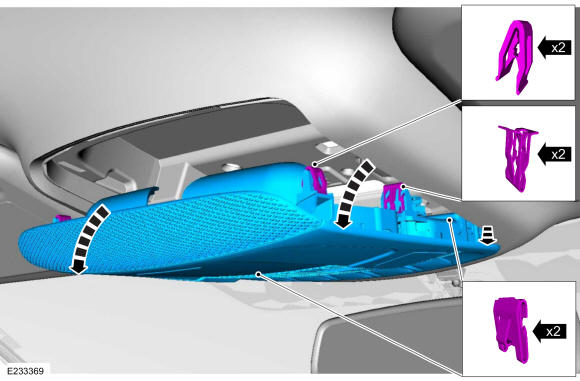

  3. Rotate to release the clips and remove the overhead console.
    GFD485210Courtesy of FORD MOTOR COMPANY

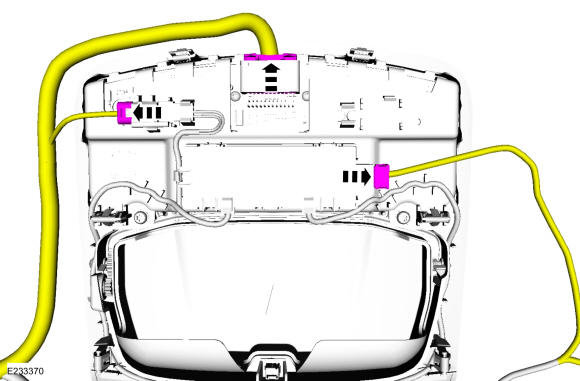

  4. Disconnect the electrical connectors.
GFD485211Courtesy of FORD MOTOR COMPANY
