Instrument Panel Upper Section: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings. Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .
NOTE: The instrument panel must be removed from the vehicle prior to removing the instrument panel upper section.

Remove the instrument panel. Refer to: Instrument Panel .
Remove the steering column. Refer to: Steering Column .

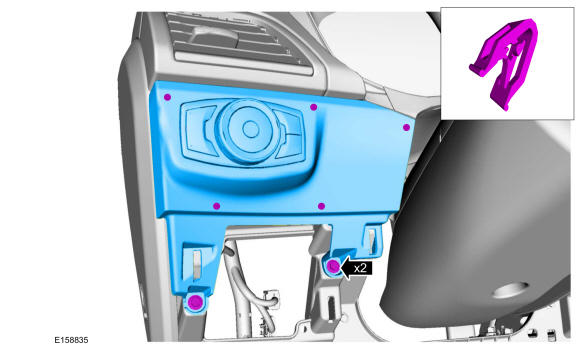

Remove the bolts, release the clips and lower the instrument panel trim panel.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

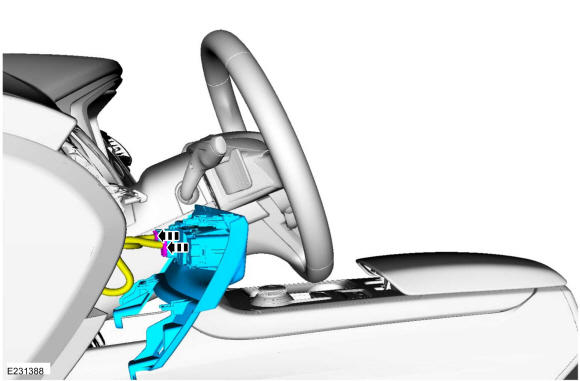

Disconnect the headlamp switch electrical connector and remove the instrument panel trim panel.

Courtesy of FORD MOTOR COMPANY

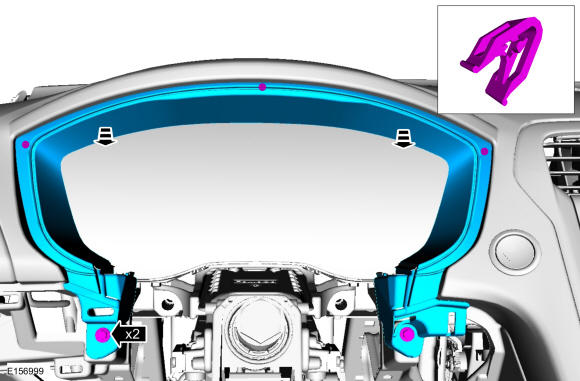

Remove the bolts, release the clips and remove the IPC bezel.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

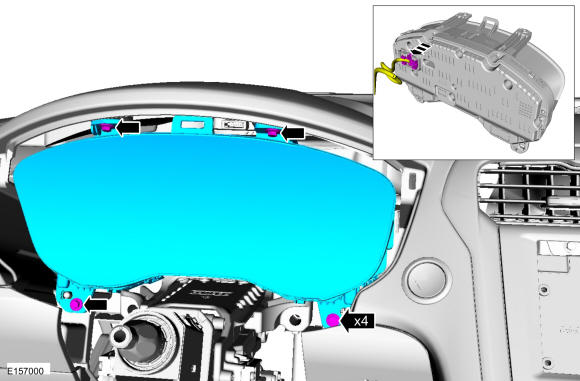

Remove the bolts and the IPC. Disconnect the electrical connector.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the FCDIM or the FDIM. For vehicles With: SYNC, Refer to: Front Control/Display Interface Module (FCDIM) . For Vehicles With: SYNC 3/Touchscreen Display, Refer to: Front Display Interface Module (FDIM) . For Vehicles With: Sony Audio System, Refer to: Front Display Interface Module (FDIM) .

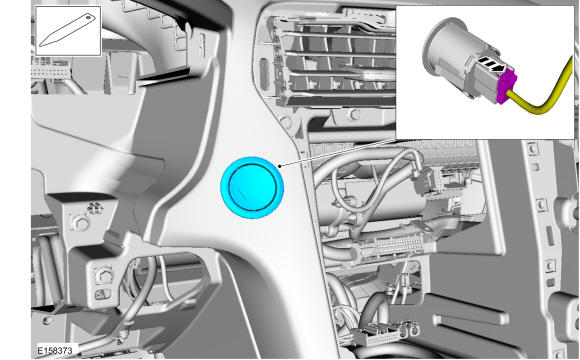

If equipped. Remove the engine start stop button and disconnect the electrical connector. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the ACM. For Vehicles With: SYNC, Refer to: Audio Front Control Module (ACM) . For Vehicles With: SYNC 3/Touchscreen Display, Refer to: Audio Front Control Module (ACM) . For Vehicles With: Sony Audio System, Refer to: Audio Front Control Module (ACM) .

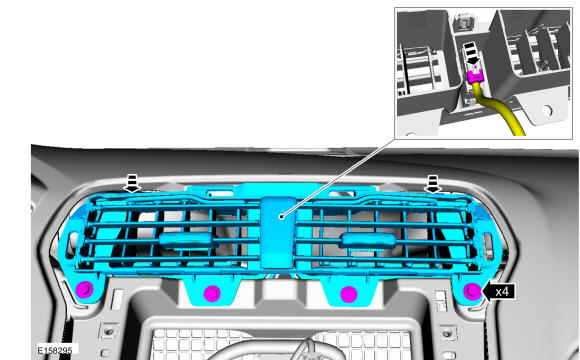

Remove the bolts and the center register. Disconnect the electrical connector.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

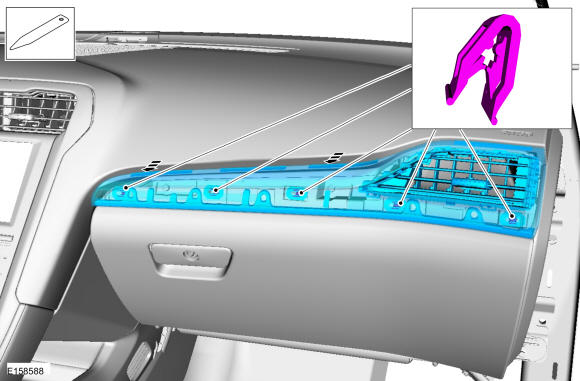

Release the clips and remove the RH instrument panel finish panel. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

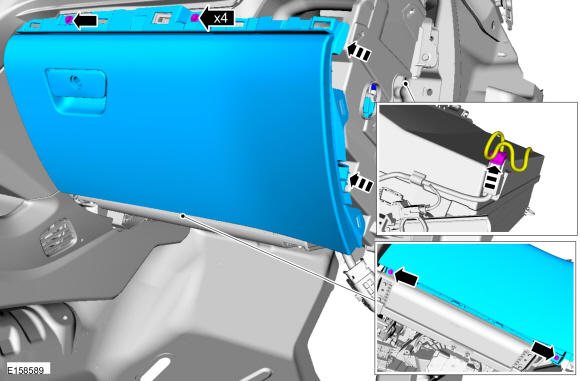

Remove the bolts, release the retaining tabs and remove the glove compartment. Disconnect the electrical connector.
Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY

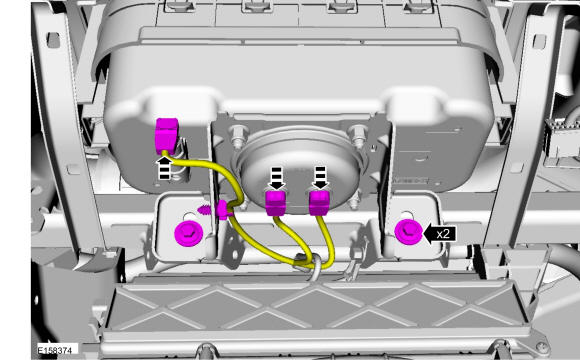

Remove the bolts, disconnect the electrical connectors, release the harness retainer and position aside harness.
Torque: 93 lb.in (10.5 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped, remove the instrument panel center speaker. Refer to: Instrument Panel Center Speaker .

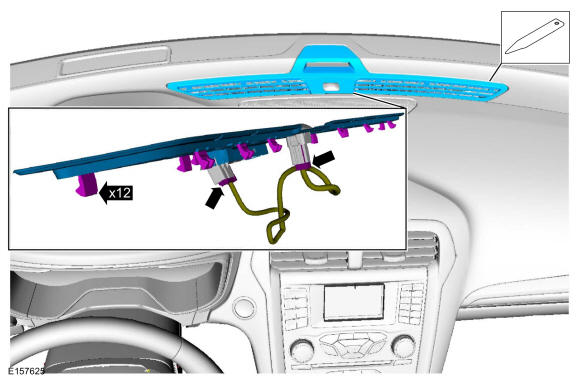

Release the clips and remove the defroster grille panel. Disconnect the electrical connectors. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Remove the HUD module. Refer to: Head Up Display (HUD) Module .

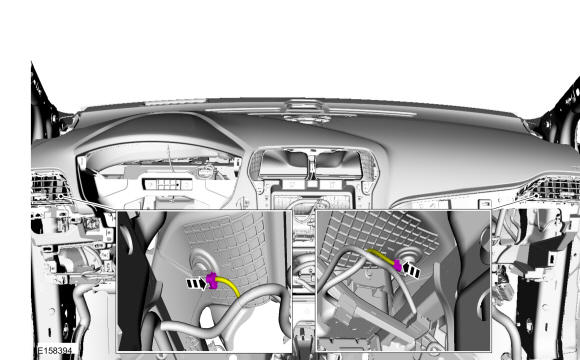

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

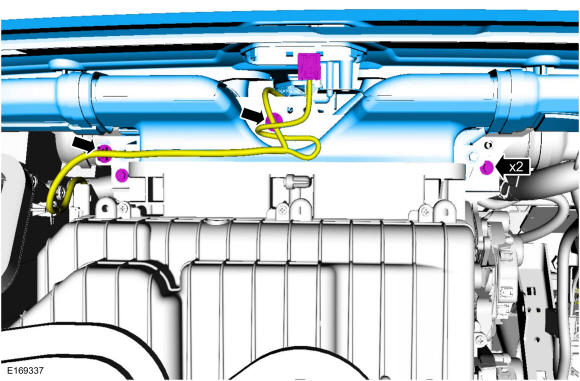

Remove the bolts, disconnect the electrical connector and release wiring harness retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the upper section or damage to the components may occur.

NOTE: Install all the bolts finger tight before final tightening.

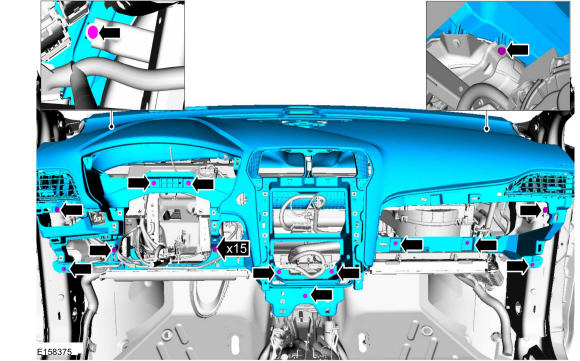

Remove the bolts and the instrument panel upper section.

Torque: 22 lb.in (2.5 Nm)

Courtesy of FORD MOTOR COMPANY
