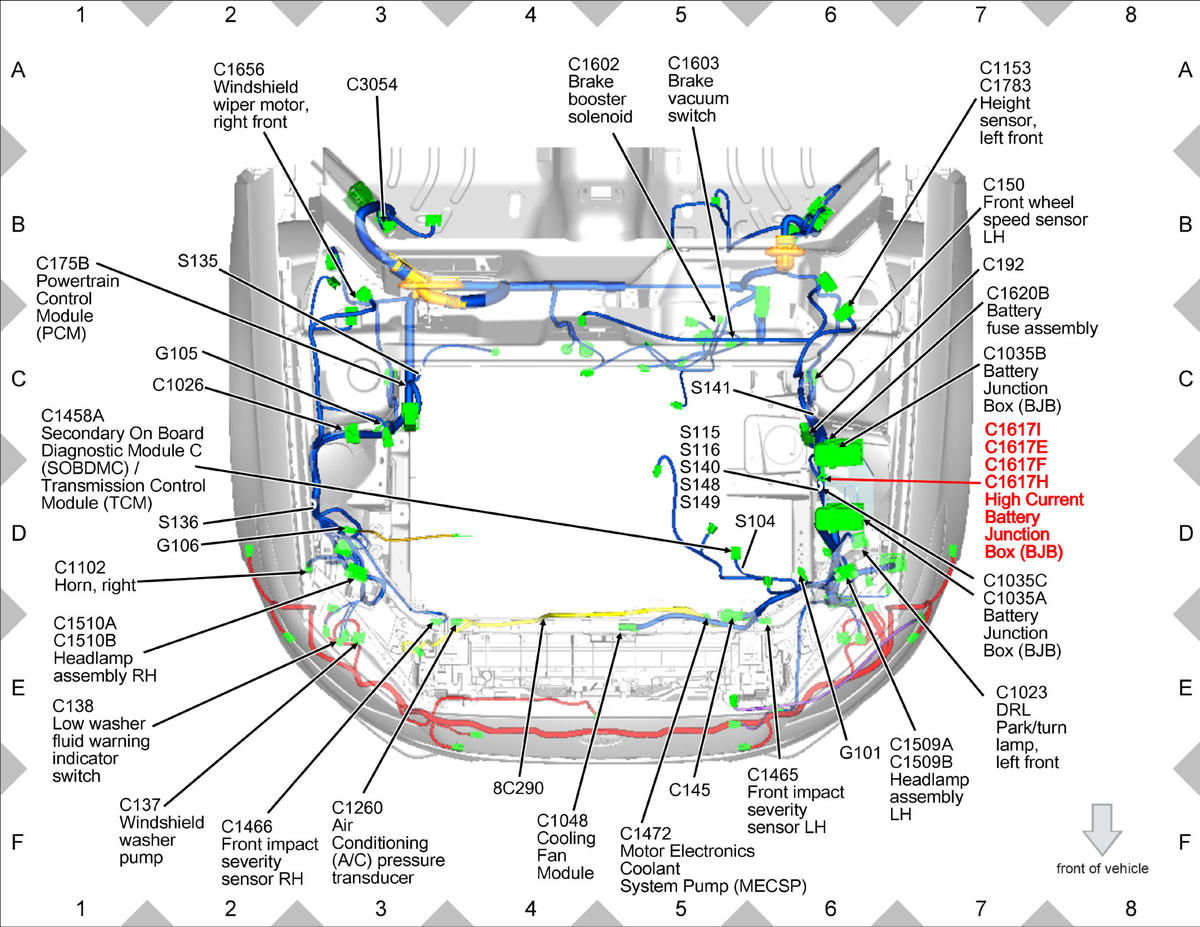

Home >> Ford >> 2020 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts By Connectors (Hybrid) >> Component Location Charts by connectors >> C1617I Under BJB
