Wheel and Tire: Removal

WARNING: This page is about a different variant/trim than selected.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: Do not use heat to loosen a seized wheel nut or damage to the wheel and wheel bearing can occur.
    NOTE: If equipped with full wheel cover with exposed wheel nuts, the wheel nuts must be removed prior to removing the wheel cover or damage to the wheel cover will occur.

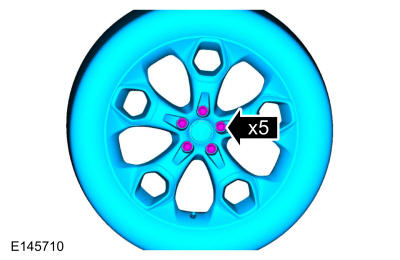

    Remove the wheel nuts and the wheel.

GFD479011Courtesy of FORD MOTOR COMPANY
