Wheel and Tire: Installation

WARNING: This page is about a different variant/trim than selected.

WARNING: When a wheel is installed, always remove any corrosion, dirt or foreign material present on the mounting surface of the wheel and the mounting surface of the wheel hub, brake drum or brake disc. Make sure that any fasteners that attach the rotor to the hub are secured so they do not interfere with the mounting surfaces of the wheel. Failure to follow these instructions when installing wheels may result in the wheel nuts loosening and the wheel coming off while the vehicle is in motion, which could result in loss of control, leading to serious injury or death to vehicle occupant(s).

NOTE: Make sure to apply a thin coat of anti-seize lubrication only to the interface between the wheel pilot bore and the hub pilot. Do not allow the anti-seize to make contact with the wheel-to-brake disc/drum mounting surface, wheel studs, wheel nuts, brake pads or brake disc friction surfaces or damage to components may occur.

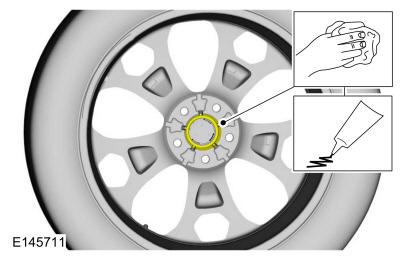

Clean the specified component with the specified material. Apply the substance from the specified tube. Apply a thin coat of anti-seize lubrication to the interface between the wheel pilot bore and the hub pilot.

Material: Motorcraft® High Temperature Nickel Anti-Seize Lubricant / XL-2

Courtesy of FORD MOTOR COMPANY
Finger tight only at this stage. Install the wheel and the wheel nuts.

Courtesy of FORD MOTOR COMPANY
WARNING: Retighten wheel nuts within 160 km (100 mi) after a wheel is reinstalled. Wheels can loosen after initial tightening. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

NOTE: Failure to tighten the wheel nuts in a star/cross pattern can result in high brake disc runout, which accelerates the development of brake roughness, shudder and vibration.

NOTE: The wheel nut torque specification is for clean, dry wheel stud and wheel nut threads.

NOTE: Final tightening to be performed with vehicle resting on tires.

NOTE: Vehicles with V6 engine are equipped with M14 wheel studs.

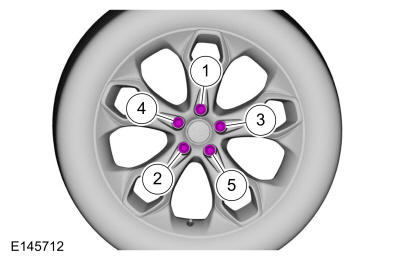

Tighten the wheel nuts in the sequence shown.

Torque: Vehicles equipped with V6 engine: 150 lb.ft (204 Nm) | All other vehicles: 100 lb.ft (135 Nm)

Fig 1: Wheel Nut Tightening Sequence

Courtesy of FORD MOTOR COMPANY
