Front Suspension Height Sensor: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

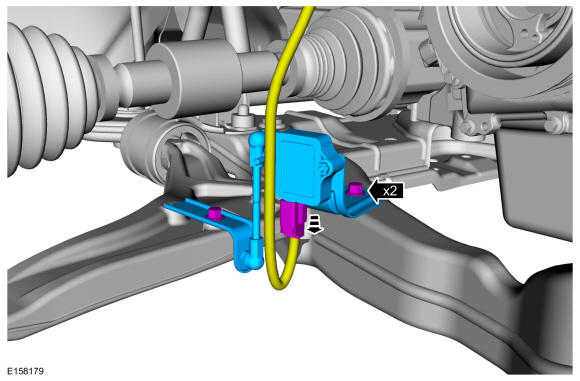

NOTE: RH height sensor assembly shown, LH similar.
- Disconnect the front suspension height sensor electrical connector.
- Remove the front suspension height sensor arm bracket-to-lower arm bolt.
Torque: 177 lb.in (20 Nm)
- Remove the front suspension height sensor bracket mounting bolt and remove the sensor.
Torque: 177 lb.in (20 Nm)
