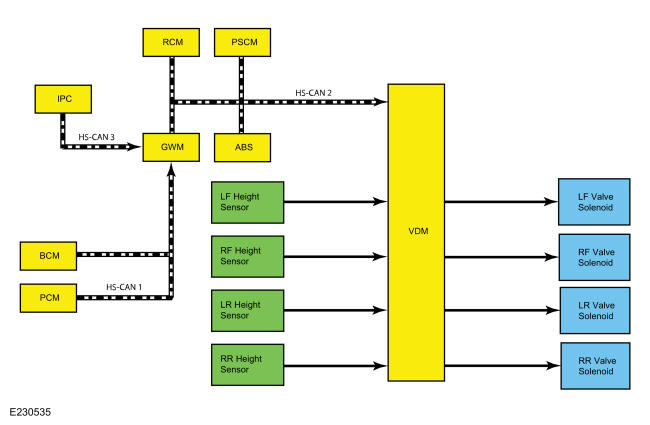

System Diagram

WARNING: This page is about a different variant/trim than selected.

GFD479026

Courtesy of FORD MOTOR COMPANY
