Pinpoint Test Dd: Fuel Pressure, Fuel Rail Pressure (FRP) And Fuel Rail Pressure Temperature (FRPT) Sensors: Introduction
WARNING: This page is about a different variant/trim than selected.
WARNING:
Vehicle fuel systems are pressurized even when the engine is not running. To avoid fire or personal injury, disable the fuel delivery system and relieve fuel system pressure before removing any fuel system component. Refer to the fuel system information at the beginning of PINPOINT TEST HC.
Failure to follow these instructions may result in personal injury
NOTE:
With the engine running, the FRP PID value may be 48-70 kPa (7-10 psi) higher than a fuel pressure reading taken with a mechanical gauge.
This pinpoint test is intended to diagnose the following:
This pinpoint test is intended to diagnose the following:
Tables and Graphs
FRP SENSOR VOLTAGE AND PRESSURE SPECIFICATIONS
| Voltage | Pressure, MPa (gauge) | Pressure, psi (gauge) |
|---|---|---|
| 4.80 | 27.95 | 4054 |
| 4.50 | 26 | 3771 |
| 3.50 | 19.5 | 2828 |
| 2.50 | 13.0 | 1885 |
| 1.50 | 6.5 | 943 |
| 0.50 | 0 | 0 |
| 0.20 | -1.95 | -283 |
FRPT SENSOR VOLTAGE AND PRESSURE SPECIFICATIONS
| Voltage | Pressure (kPa) | Pressure (psi) |
|---|---|---|
| 4.5 | 482 | 70 |
| 3.9 | 413 | 60 |
| 3.4 | 344 | 50 |
| 2.8 | 275 | 40 |
| 2.2 | 207 | 30 |
| 1.6 | 138 | 20 |
| 1.1 | 69 | 10 |
| 0.5 | 0 | 0 |
FRPT SENSOR TEMPERATURE, VOLTAGE, AND RESISTANCE SPECIFICATIONS
| Temperature | Sensor | ||
|---|---|---|---|
| °C | °F | Volts | K Ohms |
| 100 | 212 | 0.47 | 2.073 |
| 95 | 203 | 0.54 | 2.405 |
| 90 | 194 | 0.61 | 2.800 |
| 85 | 185 | 0.70 | 3.273 |
| 80 | 176 | 0.80 | 3.840 |
| 75 | 167 | 0.92 | 4.524 |
| 70 | 158 | 1.06 | 5.351 |
| 65 | 149 | 1.21 | 6.356 |
| 60 | 140 | 1.38 | 7.584 |
| 55 | 131 | 1.56 | 9.091 |
| 50 | 122 | 1.77 | 10.949 |
| 45 | 113 | 1.99 | 13.252 |
| 40 | 104 | 2.23 | 16.123 |
| 35 | 95 | 2.48 | 19.720 |
| 30 | 86 | 2.74 | 24.253 |
| 25 | 77 | 3.00 | 30.000 |
| 20 | 68 | 3.26 | 37.332 |
| 15 | 59 | 3.50 | 46.745 |
| 10 | 50 | 3.73 | 58.911 |
| 5 | 41 | 3.95 | 74.745 |
| 0 | 32 | 4.13 | 95.501 |
Harness Side
| Circuit | Pin |
|---|---|
| VREF (Reference Voltage) | 3 |
| FLP (Fuel Low Pressure) | 1 |
| SIGRTN (Signal Return) | 2 |
Harness Side
| Circuit | Pin |
|---|---|
| VREF (Reference Voltage) | 5 |
| FRP (Fuel Rail Pressure) | 4 |
| SIGRTN (Signal Return) | 3 |

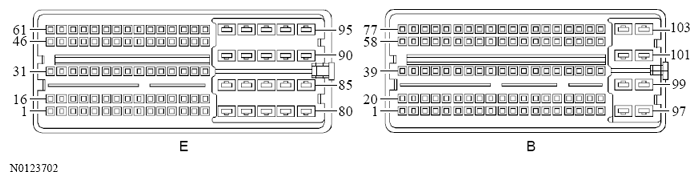

Harness Side
| Circuit | Pin |
|---|---|
| FLP (Fuel Low Pressure) | B73 |
| FRP (Fuel Rail Pressure) | E55 |
