Seatbelt Shoulder Height Adjuster: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the B-pillar trim panel. Refer to: B-Pillar Trim Panel .

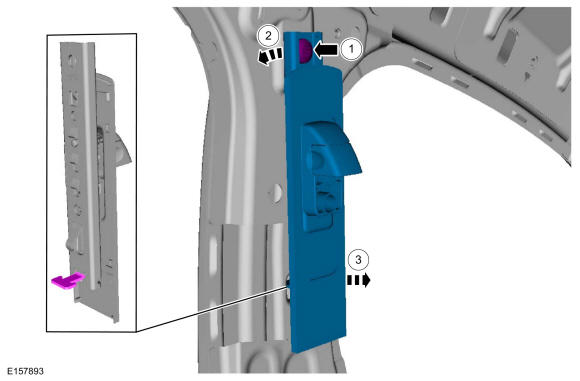

    1. Remove the bolt.

      Torque: 30 lb.ft (40 Nm)

    2. Rotate the seatbelt shoulder height adjuster to release the locking tab.
    3. Remove the seatbelt shoulder height adjuster.
GFD485405Courtesy of FORD MOTOR COMPANY
