Rear Seatbelt Buckle RH and Center: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the rear seat cushion. Refer to: Rear Seat Cushion .

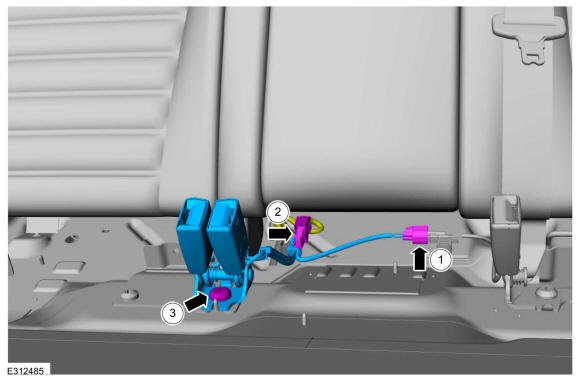

- Remove the rear RH and center seatbelt buckle.
- Disconnect the electrical connector.
- Detach and disconnect the electrical connector.
- Remove the bolt.
Torque: 35 lb.ft (48 Nm)
