Rear Seatbelt Buckle LH: Removal

WARNING: This page is about a different variant/trim than selected.
NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the rear seat cushion. Refer to: Rear Seat Cushion .

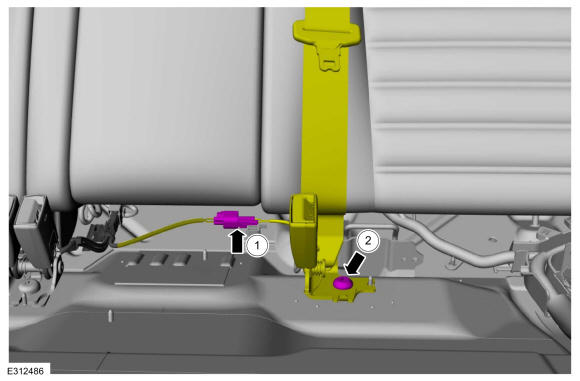

    1. Detach and disconnect the LH rear seatbelt buckle electrical connector.
    2. Remove the bolt and position the LH rear seatbelt buckle aside.

      Torque: 35 lb.ft (48 Nm)

    GFD485393Courtesy of FORD MOTOR COMPANY

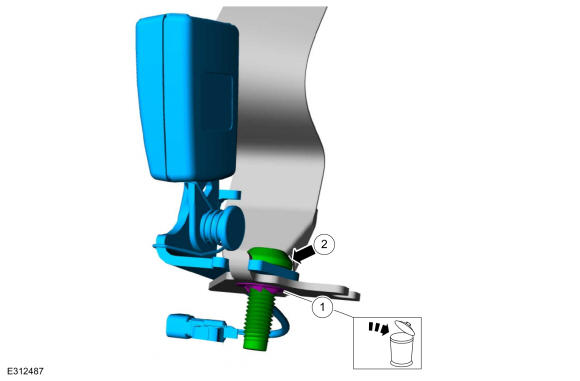

  3. Remove the rear LH seatbelt buckle.

    1. Remove the bolt retainer and discard.
    2. Remove the bolt.

GFD485394Courtesy of FORD MOTOR COMPANY
