Rear Center Seatbelt Retractor: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Remove the 60 percent rear seat backrest. Refer to: Rear Seat Backrest .

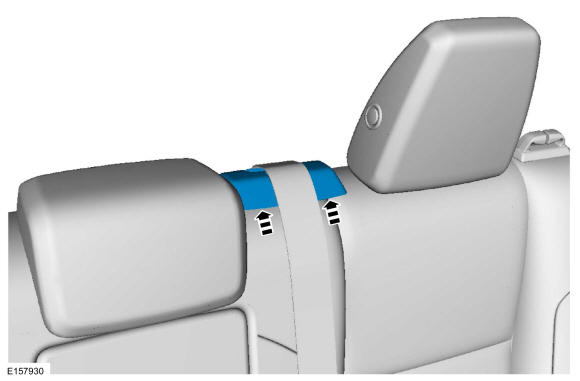

Remove the rear center seatbelt guide bezel.

Courtesy of FORD MOTOR COMPANY

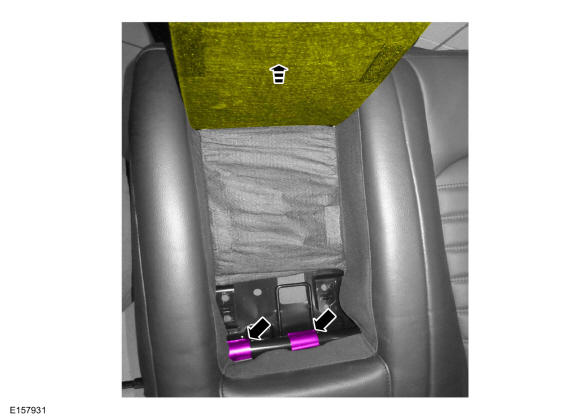

- Detach the rear seat J-clips.
- Unzip and invert the rear seat backrest cover.
- If equipped. Remove the rear seat armrest bolts.
  Torque: 89 lb.in (10 Nm)
Courtesy of FORD MOTOR COMPANY
If equipped. Remove the rear seat armrest.

Courtesy of FORD MOTOR COMPANY

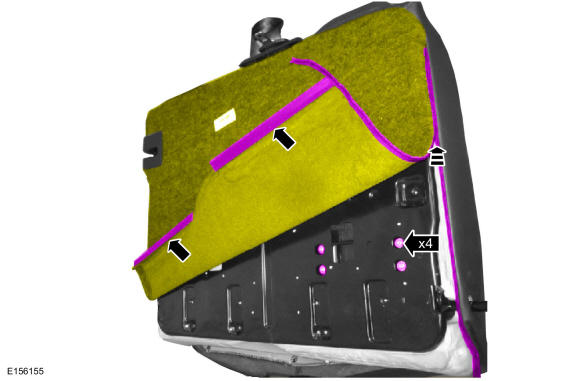

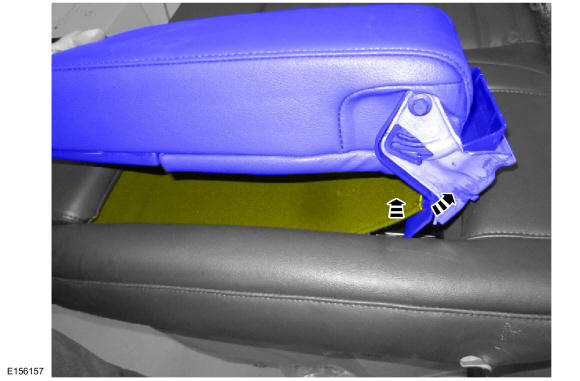

If equipped. Lift the rear seat backrest cover and detach the J-clips.

Courtesy of FORD MOTOR COMPANY

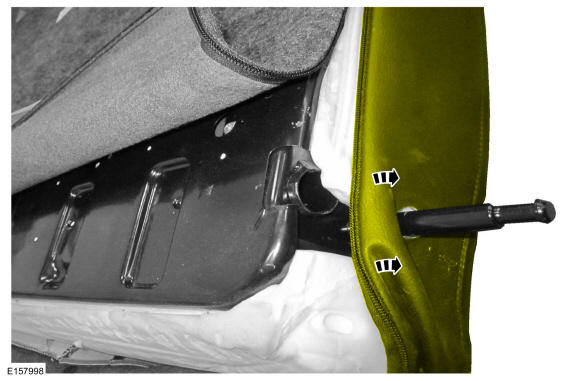

Pull the rear seat backrest cover over the rear seat guide pin and position aside.

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when separating the rear seat backrest cover from the hook-and-loop strips or the hook-and-loop strips may be torn from the rear seat backrest foam.

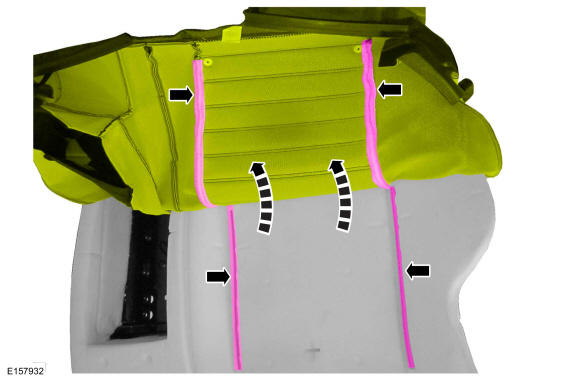

Release the hook-and-loop strips and invert the rear seat backrest cover.

Courtesy of FORD MOTOR COMPANY

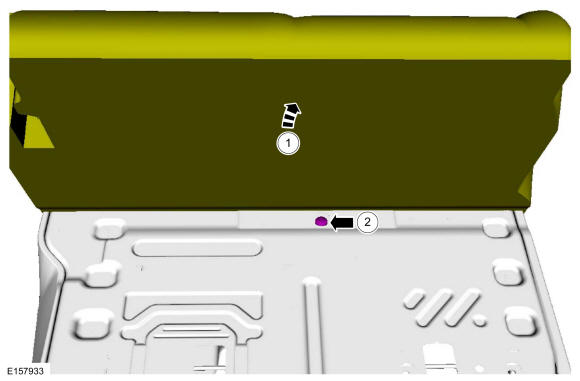

1. Lift the rear seat backrest cover and foam.
2. Remove the rear center seatbelt retractor bolt.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY

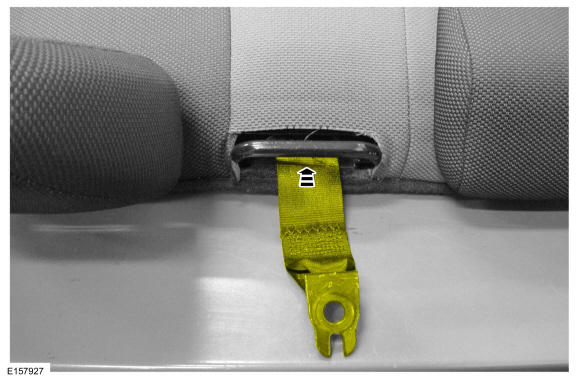

Route the rear center seatbelt through the guide.

Courtesy of FORD MOTOR COMPANY

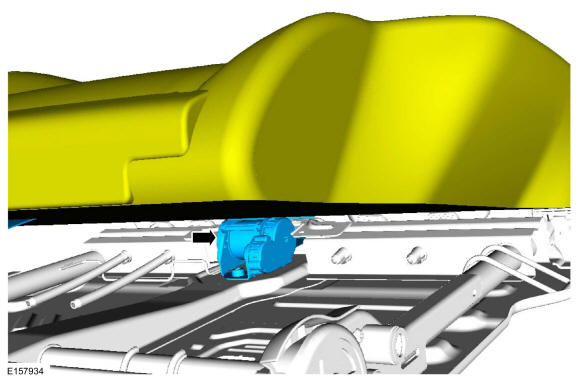

Remove the rear center seatbelt retractor.
