Seatbelt Tongue Rotated On Belt

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Adjustment

NOTE: Typical seatbelt tongue shown, others similar.
  1. Fold the seatbelt as indicated.
    GFD485381Courtesy of FORD MOTOR COMPANY

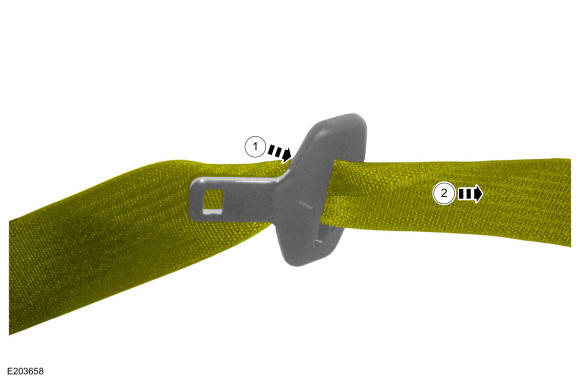

    1. Feed the folded portion of the seatbelt into the seatbelt tongue.
    2. Pull the seatbelt through the seatbelt tongue to remove the twist in the seatbelt.
GFD485382Courtesy of FORD MOTOR COMPANY
