Heated Oxygen Sensor (HO2S): Removal

WARNING: This page is about a different variant/trim than selected.

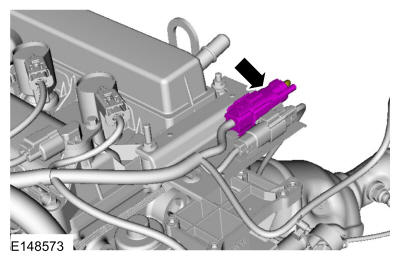

  1. Disconnect the HO2S electrical connector.
    GFD482422Courtesy of FORD MOTOR COMPANY

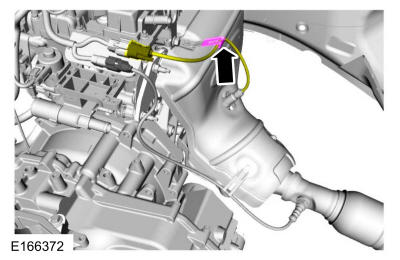

  2. Detach the wiring harness retainer.
    GFD482423Courtesy of FORD MOTOR COMPANY

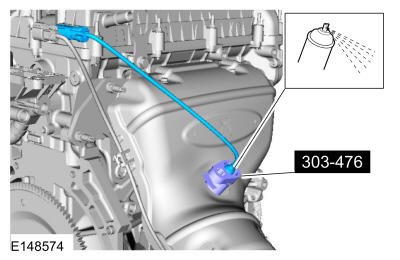

  3. Remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.

    Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

GFD482424Courtesy of FORD MOTOR COMPANY
